VISHAYDatasheet (PDF)

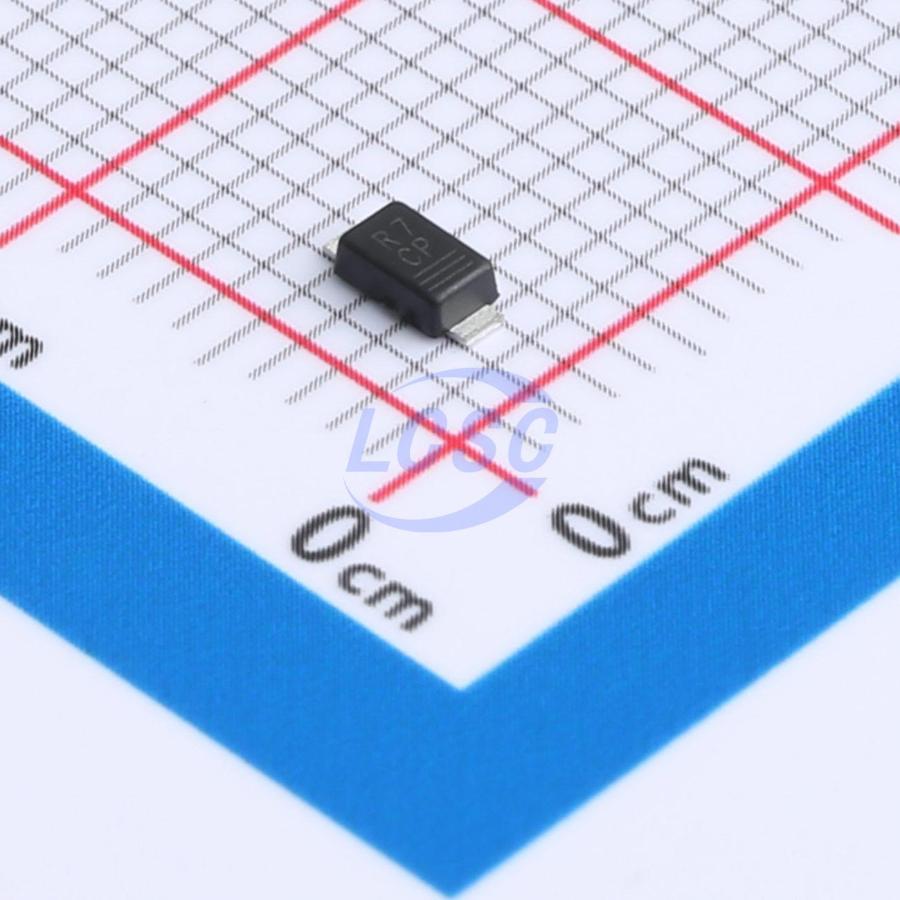

SMF36A-E3-08
58.1VC Clamp 3.4A@10/1000us Ipp ESD DIODE SMF(DO-219AB)
SMF(DO-219AB)ROHS3 CompliantActive
ESD DIODE 36VWM 58.1VC SMF(DO-219AB)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMF36A-E3-08
- Store part #
- C1973179
- Package / case
- SMF(DO-219AB)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C1973179
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.73 | ₹103.65 |
| 50+ | ₹16.19 | ₹809.50 |
| 150+ | ₹14.25 | ₹2,137.50 |
| 500+ | ₹11.83 | ₹5,915.00 |
| 3,000+ | ₹10.74 | ₹32,220.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹20.73
₹103.65
excl. GST
₹122.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF36A-E3-08
₹103.65 for 5 + GST
Specifications
- Clamping Voltage
- 58.1V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 3.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 44.3V
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
Key features
- 200 W peak pulse power capability with a Available 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Low profile package
- Wave and reflow solderable e3
- ESD immunity acc. IEC 61000 - 4 - 2 RoHS ± 30 kV contact discharge, ± 30 kV air discharge
- ESD capability according to AEC - Q101: Available human body model: class H3B: > 8 kV
- Low incremental surge resistance, excellent clamping capability
- “Low Noise” technology - very fast response time
- AEC - Q101 qualified available
- Compatible to SOD - 123W package case outline or SOD - 123F and SOD - 123FL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF36A#C2857287JSMSEMI · SOD-123FL | JSMSEMI | SOD-123FL | 45,050 | ₹2.13 · 45,050 in stock | View |
 | SMF36A#C41376086R+O · SOD-123FL | R+O | SOD-123FL | 2,98,080 | ₹4.06 · 2,98,080 in stock | View |
 | SMF36A#C5353365FOSAN · SOD-123FL | FOSAN | SOD-123FL | 1,720 | ₹2.73 · 1,720 in stock | View |
 | SMF36A#C726915TWGMC · SOD-123FL | TWGMC | SOD-123FL | 8,220 | ₹3.89 · 8,220 in stock | View |
 | SMF33A-E3-08#C1972966VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 4,005 | ₹38.54 · 4,005 in stock | View |
