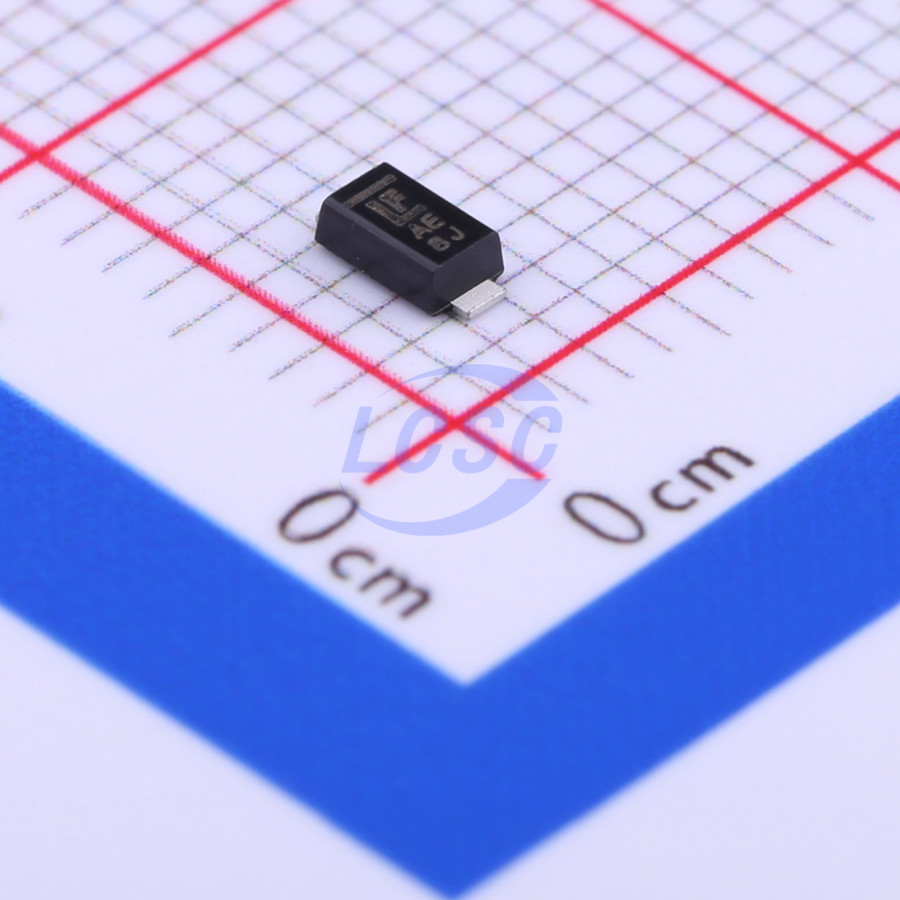

LittelfuseDatasheet (PDF)
SMF5.0A
9.2VC Clamp 21.7A Ipp TVS DIODE SOD-123FL
PopularSOD-123FLROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC SOD-123FL
- Manufacturer
- Littelfuse
- Manufacturer part #
- SMF5.0A
- Store part #
- C151296
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,385 in stock
#C151296
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.29 | ₹66.45 |
| 50+ | ₹11.02 | ₹551.00 |
| 150+ | ₹9.86 | ₹1,479.00 |
| 500+ | ₹8.90 | ₹4,450.00 |
| 3,000+ | ₹7.98 | ₹23,940.00 |
| 6,000+ | ₹7.74 | ₹46,440.00 |
5 × ₹13.29
₹66.45
excl. GST
₹78.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF5.0A
₹66.45 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 21.7A
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 400uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The SMF series is designed specifcally to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This SMF package has a 50 % smaller footprint as compared to the SMA package and delivers one of the lowest height profles (1.1 mm) available in the industry.
Applications
- Protection of I/O interfaces, VCC bus and other vulnerable circuit used in cellular phones
- Protection of I/O interfaces, VCC bus and other vulnerable circuit used in portable devices
- Protection of I/O interfaces, VCC bus and other vulnerable circuit used in business machines
- Protection of I/O interfaces, VCC bus and other vulnerable circuit used in power supplies
- Protection of I/O interfaces, VCC bus and other vulnerable circuit used in other consumer applications
Key features
- Compatible with industrial standard package SOD-123FL
- Optimized surface mount footprint for minimal PCB space impact
- Low profle: maximum height of 1.1 mm
- Low inductance, excellen clamping capability
- Compatible with high temperature refow soldering (260°C/40sec)
- Typical failure mode due to exceeding maximum ratings is a short circuit condition
- Whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
- IEC-61000-4-2 ESD 30kV (Air), 30 kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- 200 W peak pulse power capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01 %
- Fast response time: typically less than 1.0ns from 0 Volts to VBR min
- Glass passivated junction
- Built-in strain relief
- UL Recognized epoxy meeting fammability classifcation V-0
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen-free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal fnish material is tin(Sn) (IPC/ JEDEC J-STD609A.01)
