MSKSEMIDatasheet (PDF)

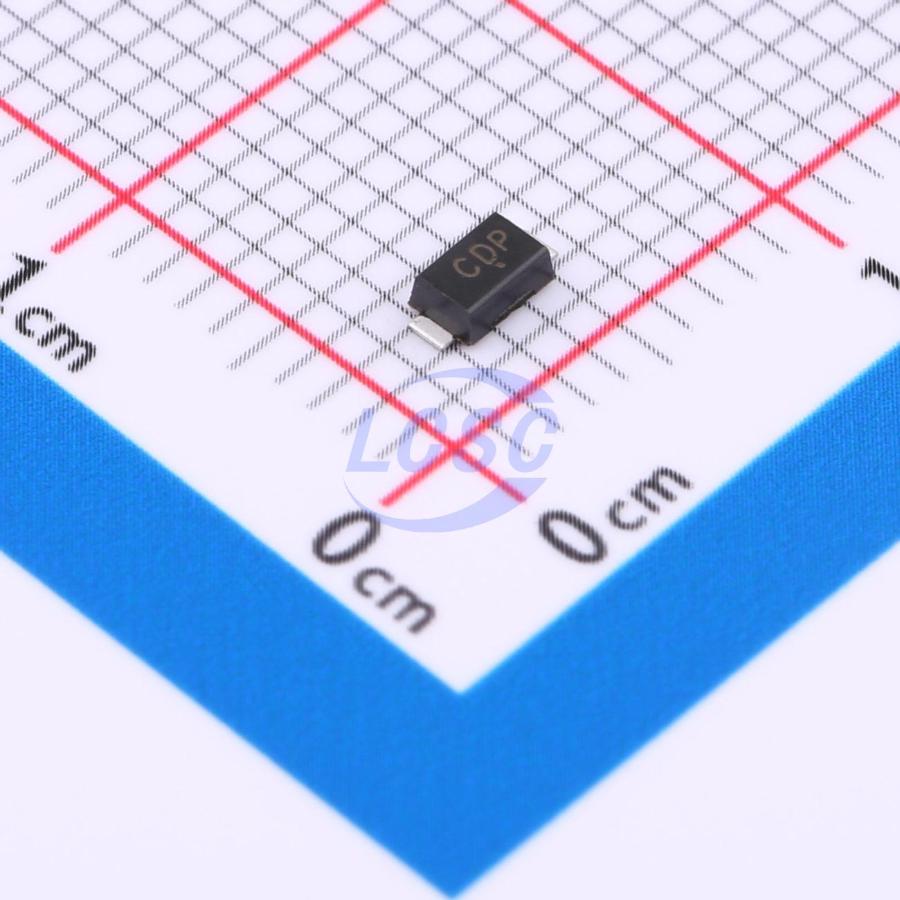

SMF70CA-MS
113VC Clamp 1.5A@10/1000us Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 70VWM 113VC SOD-123FL
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SMF70CA-MS
- Store part #
- C7473260
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C7473260
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.28 | ₹114.00 |
| 500+ | ₹1.77 | ₹885.00 |
| 3,000+ | ₹1.49 | ₹4,470.00 |
| 6,000+ | ₹1.34 | ₹8,040.00 |
| 24,000+ | ₹1.19 | ₹28,560.00 |
| 51,000+ | ₹1.11 | ₹56,610.00 |
50 × ₹2.28
₹114.00
excl. GST
₹134.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF70CA-MS
₹114.00 for 50 + GST
Specifications
- Clamping Voltage
- 113V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 77.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 70V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.041 g
Overview
Key features
- For surface mounted applications in order to optimize board space.
- Low profile package
- Glass passivated junction
- Low inductance
- Plastic package has Underwriters Laboratory Flammability
