TECH PUBLICDatasheet (PDF)

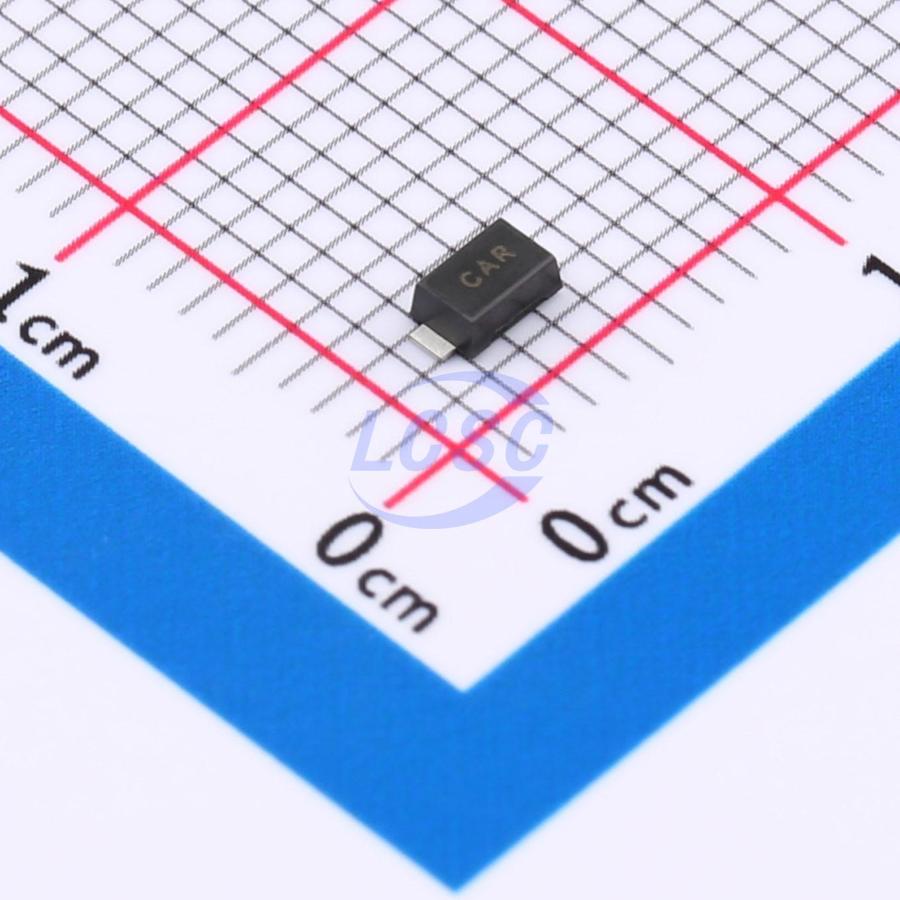

SMF8.0CA
13.6VC Clamp 14.7A@10/1000us Ipp SOD-123FL
SOD-123FLRoHSActive
8VWM 13.6VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SMF8.0CA
- Store part #
- C42370546
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C42370546
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.21 | ₹64.20 |
| 200+ | ₹2.57 | ₹514.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 2,000+ | ₹2.00 | ₹4,000.00 |
| 10,000+ | ₹1.59 | ₹15,900.00 |
| 20,000+ | ₹1.49 | ₹29,800.00 |
20 × ₹3.21
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMF8.0CA
₹64.20 for 20 + GST
Specifications
- Clamping Voltage
- 13.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 14.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.83V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 25uA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMF8.0CA#C42370593TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,920 | ₹3.65 · 2,920 in stock | View |
 | SJD12C08L01#C54780891TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,780 | ₹3.98 · 1,780 in stock | View |
 | SMF7.5CA#C42440488TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 3,000 | ₹3.12 · 3,000 in stock | View |
 | TPSMF7.5CA#C42440523TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,400 | ₹3.69 · 2,400 in stock | View |
 | SJD12C7.5L01#C54780923TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,680 | ₹3.98 · 2,680 in stock | View |
