VISHAYDatasheet (PDF)

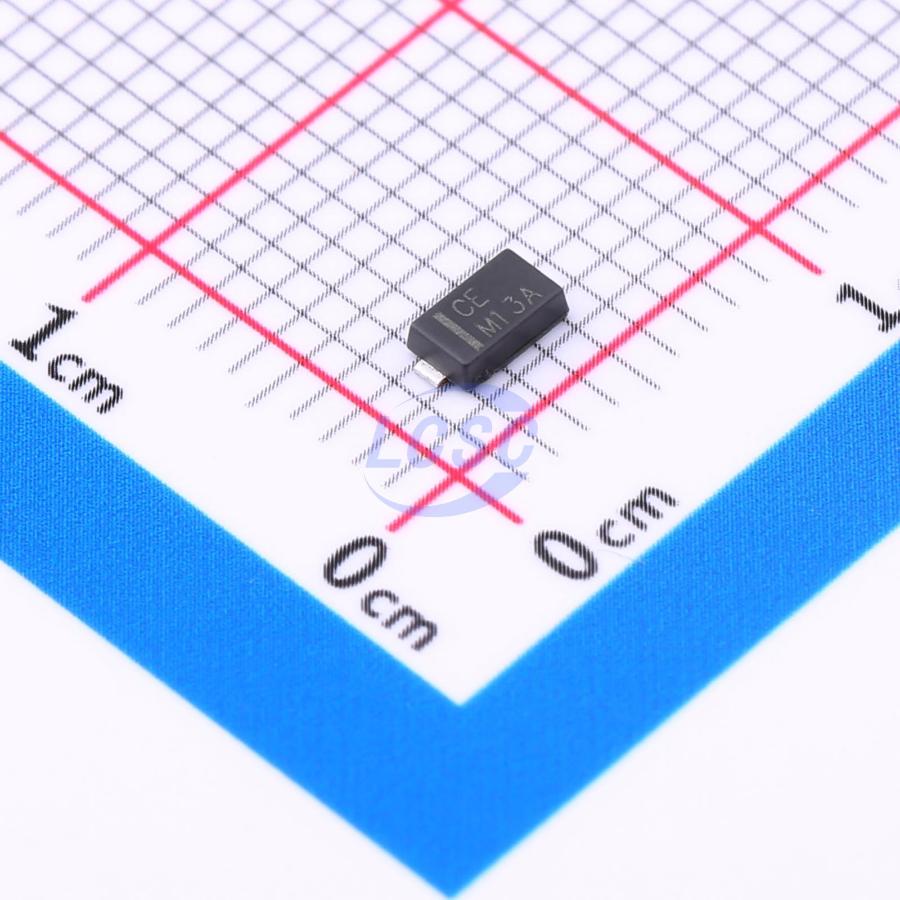

SMP26A-M3/84A
42.1VC Clamp 9.5A@10/1000us Ipp TVS DIODE DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
TVS DIODE 26VWM 42.1VC DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMP26A-M3/84A
- Store part #
- C1974728
- Package / case
- DO-220AA(SMP)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C1974728
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.86 | ₹72.86 |
| 10+ | ₹59.27 | ₹592.70 |
| 30+ | ₹52.68 | ₹1,580.40 |
| 100+ | ₹45.89 | ₹4,589.00 |
| 500+ | ₹41.99 | ₹20,995.00 |
| 1,000+ | ₹39.93 | ₹39,930.00 |
1 × ₹72.86
₹72.86
excl. GST
₹85.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMP26A-M3/84A
₹72.86 for 1 + GST
Specifications
- Clamping Voltage
- 42.1V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 9.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.9V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 26V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.083 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Very low profile - typical height of 1.0 mm
- Ideal for automated placement RoHS
- Available in uni-directional COMPLIANT HALOGEN
- 400 W peak pulse power capability with a FREE 10/1000 μs waveform
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
