VISHAYDatasheet (PDF)

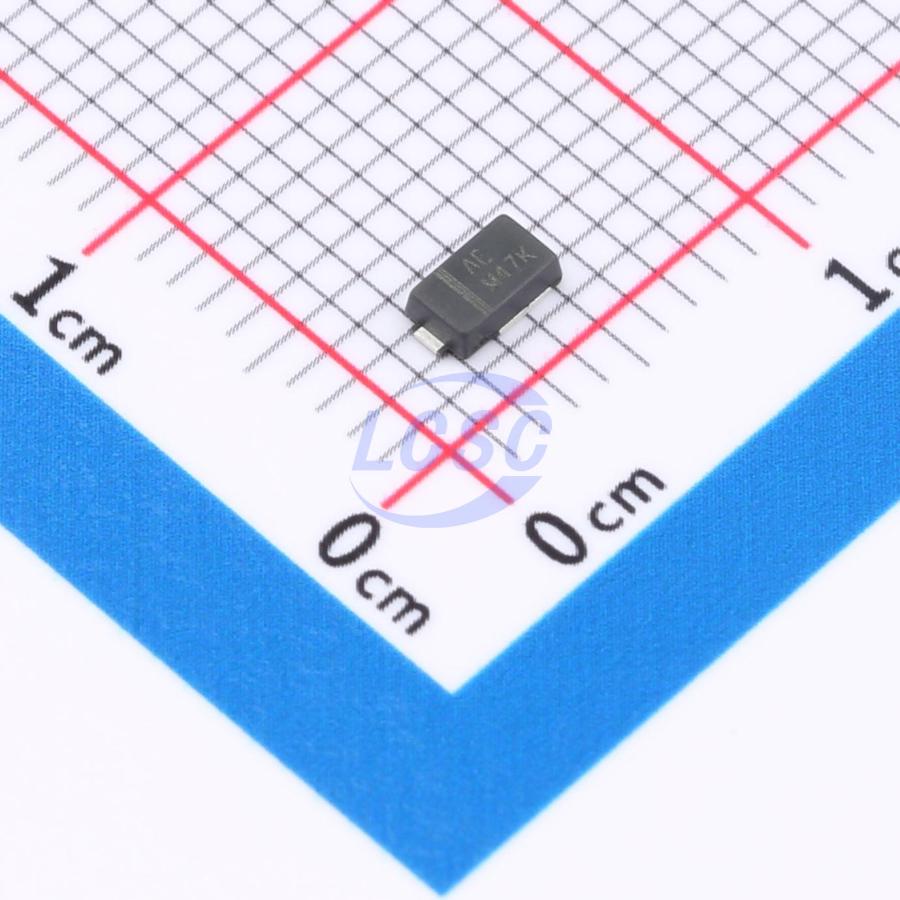

SMP5.0A-M3/84A
9.2VC Clamp 43.5A Ipp TVS DIODE DO-220AA(SMP)
DO-220AA(SMP)ROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC DO-220AA(SMP)
- Manufacturer
- VISHAY
- Manufacturer part #
- SMP5.0A-M3/84A
- Store part #
- C3709968
- Package / case
- DO-220AA(SMP)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C3709968
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.88 | ₹189.40 |
| 50+ | ₹37.35 | ₹1,867.50 |
| 150+ | ₹36.99 | ₹5,548.50 |
| 500+ | ₹36.63 | ₹18,315.00 |
5 × ₹37.88
₹189.40
excl. GST
₹223.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SMP5.0A-M3/84A
₹189.40 for 5 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 43.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 150uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Very low profile
- typical height of 1.0mm
- Ideal for automated placement
- Available in unidirectional
- 400 W peak pulse power capability with a 10 / 1000 μs waveform
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260°C
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
