ISSI

SN3948

Boost Switching Regulator IC Adjustable 1 Output 2A SOP-8

SOP-8RoHSActive

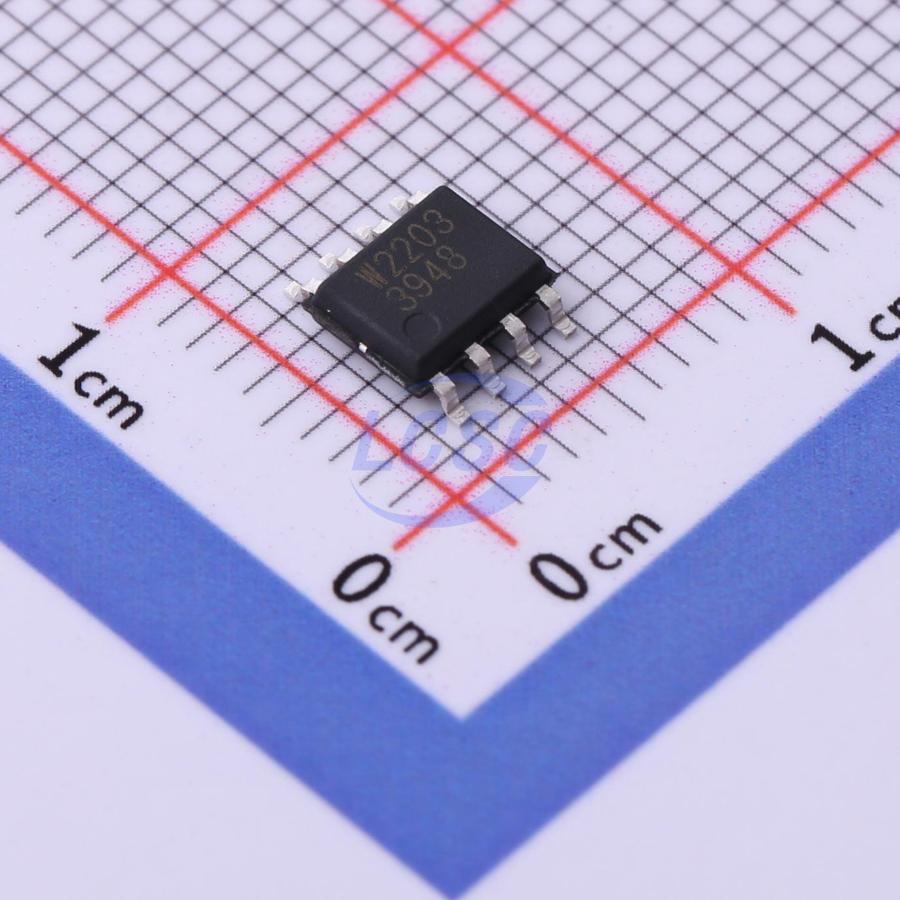

SN3948 Boost Converter Chip

Manufacturer: ISSI
Manufacturer part #: SN3948
Store part #: C3041112
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,203 in stock

#C3041112

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹103.27	₹103.27
10+	₹83.97	₹839.70
30+	₹74.21	₹2,226.30
100+	₹64.66	₹6,466.00
500+	₹52.51	₹26,255.00
1,000+	₹49.69	₹49,690.00

Quantity (min 1)

1 × ₹103.27

₹103.27

excl. GST

₹121.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN3948

₹103.27 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Boost
Frequency - Switching: 20kHz~200kHz
Number of Outputs: 1
Features: Adjustable current limiting;Overcurrent Protection;Built-in LDO regulator
Output Type: Adjustable
Topology: Boost
Operating Voltage: 5V~100V
Switch tube (built-in/external): External
Output Current: 2A
Quiescent Current: 250uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.21 g

Overview

SN3948 is a boost converter operating in PFM mode. It employs an external NMOS transistor, and the output current can be stabilized up to 2A by adjusting the external current-sensing resistor, making it suitable for various high-power LED array applications. SN3948 supports a wide input voltage range of 5V - 100V via external resistors. The built-in OVP function prevents circuit damage caused by open-load conditions, and the output current can be adjusted freely between 0 - 100% by controlling the PWM signal duty cycle. SN3948 requires no loop compensation, resulting in superior system stability.
