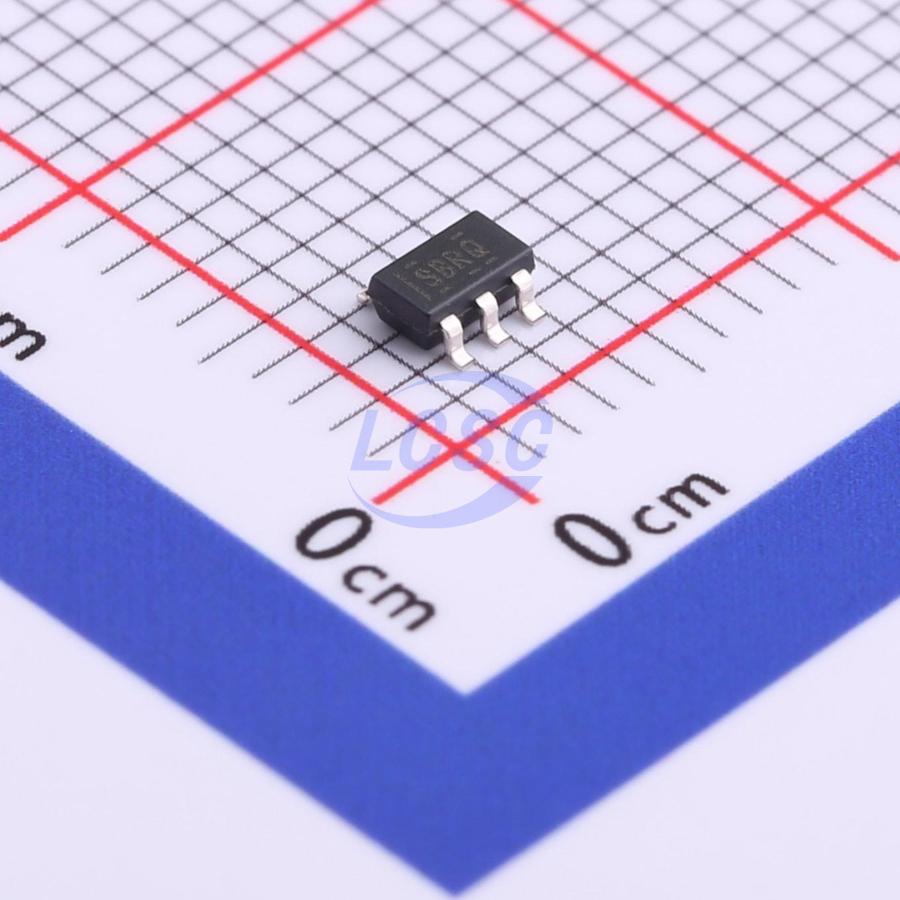

SN6501QDBVRQ1

The SN6501-Q1 is a monolithic oscillator/power driver specifically designed for small form-factor isolated power supplies in isolated interface applications. This device can drive the primary of a thin center-tapped transformer from a 3.3V or 5V direct current (DC) power supply. Depending on the turns ratio of the transformer, the secondary of the transformer can be wound to provide any isolation voltage. The SN6501-Q1 includes an oscillator followed by a gate drive circuit, which provides compensated output signals to drive ground-referenced N-channel power switches. This internal logic circuit ensures the break-before-make operation between the two switches. The SN6501-Q1 comes in a small SOT-23 (5) package and is rated for an operating temperature range of -40°C to 125°C.

Applications

• Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, and low-power LAN
• Industrial automation
• Process control
• Medical equipment

Key features

• Automotive-grade, AEC-Q100 qualified
• Device temperature grade 1: –40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level H2
• Device CDM ESD classification level C4B
• 3.3V or 5V single-supply push-pull driver for small transformers
• High primary-side current drive: – 5V supply: 350mA (max); 3.3V supply: 150mA (max)
• Low ripple on rectified output enables small output capacitors
• Small 5-pin SOT-23 package
