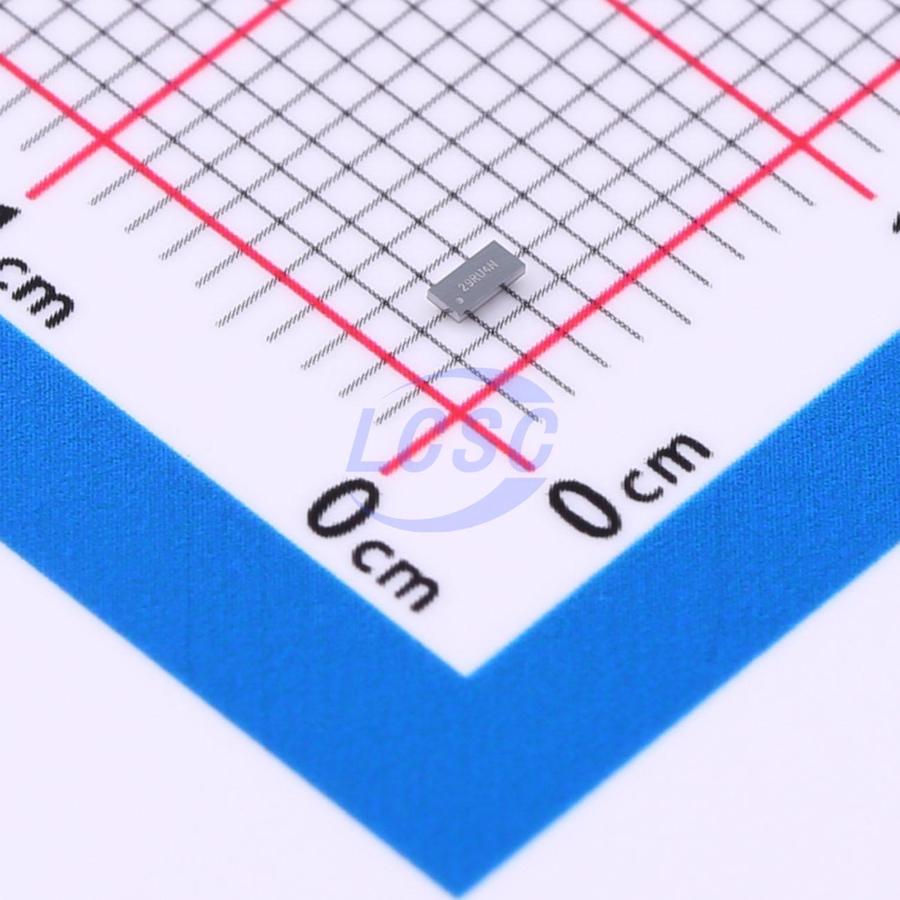

SN74AUC2G53YZPR

800mV~2.7V 1 20Ω WCSP-8(1.9x1.9) Analog Switches, Multiplexers, Demultiplexers RoHS

WCSP-8(1.9x1.9)ROHS3 CompliantActive

Single-Pole Double-Throw (SPDT) Analog Switch or 2:1 Analog Multiplexer/Demultiplexer

Manufacturer: TI
Manufacturer part #: SN74AUC2G53YZPR
Store part #: C2673213
Package / case: WCSP-8(1.9x1.9)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,123 in stock

#C2673213

Stock & price checked 45 h ago

Quantity	Unit price	Pack price
1+	₹112.76	₹112.76
10+	₹91.47	₹914.70
30+	₹80.82	₹2,424.60
100+	₹70.17	₹7,017.00
500+	₹63.87	₹31,935.00
1,000+	₹60.62	₹60,620.00

Quantity (min 1)

1 × ₹112.76

₹112.76

excl. GST

₹133.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUC2G53YZPR

₹112.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 800mV~2.7V
Number of Channels: 1
Ron: 20Ω
Propagation Delay: 200ps
Con: 6pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.011 g

Overview

This analog switch is operational at 0.8 V to 2.7 V VCC, but is designed specifically for 1.1-V to 2.7 V VCC operation. The SN74AUC2G53 can handle both analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

signal gating
chopping
modulation or demodulation (modem)
signal multiplexing for analog-to-digital and digital-to-analog conversion systems

Key features

Available in the Texas Instruments NanoFree™ Package
Operates at 0.8 V to 2.7 V
Sub-1-V Operable
Low Power Consumption, 10 μa at 2.7 V
High On-Off Output Voltage Ratio
High Degree of Linearity
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
