TECH PUBLIC

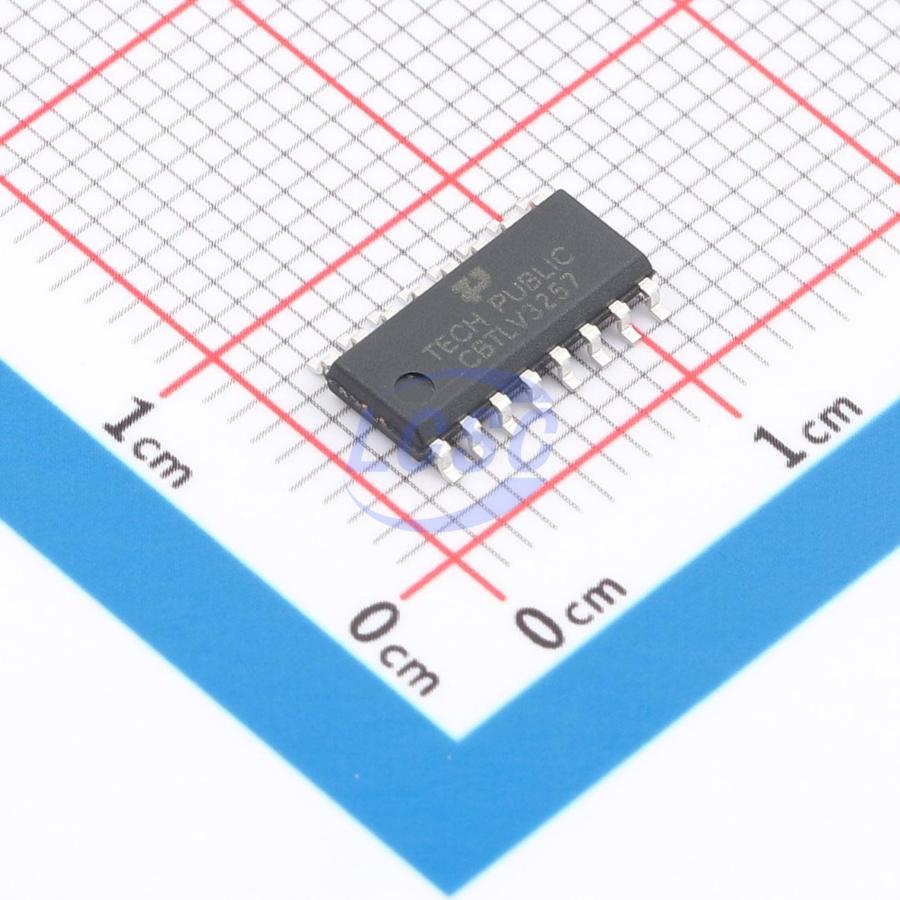

SN74CBTLV3257DR-TP

4 1.5V~5.5V 5Ω@3.0V SOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

SOP-16ROHS CompliantActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74CBTLV3257DR-TP
Store part #: C50314336
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,530 in stock

#C50314336

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.66	₹118.30
50+	₹20.65	₹1,032.50
150+	₹19.36	₹2,904.00
500+	₹17.75	₹8,875.00
3,000+	₹17.03	₹51,090.00
6,000+	₹16.60	₹99,600.00

Quantity (min 5, multiples of 5)

5 × ₹23.66

₹118.30

excl. GST

₹139.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74CBTLV3257DR-TP

₹118.30 for 5 + GST

Specifications

Features: Glitch-free switching;Level shifting
Operating Temperature: -40℃~+85℃
Number of Channels: 4
Voltage - Supply: 1.5V~5.5V
Ron: 5Ω@3.0V
Con: 9pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1 g

Overview

This device is a high-performance quad SPDT analog switch with a typical on-resistance of 4.0Ω at 4.5V VCC. It operates over a wide supply voltage range of 2.3V to 4.5V and features break-before-make switching. Select inputs are TTL-level compatible. The device also incorporates intelligent circuitry that minimizes VCC leakage current even when the control voltage is below the VCC supply voltage. This feature makes it well-suited for mobile handheld applications, enabling direct connection to the general-purpose I/O of baseband processors for minimum battery drain. In other words, no additional components are required in the application to level-shift the control signals up to VCC.
