lingxingicDatasheet (PDF)

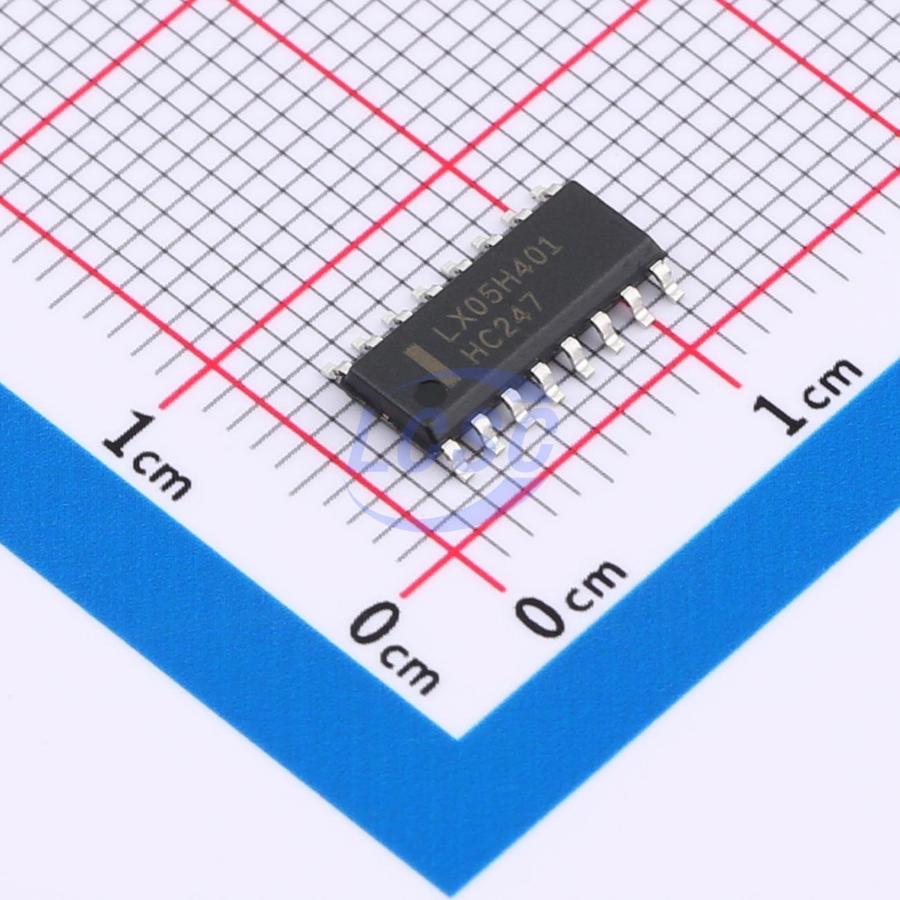

SN74HC247DR(LX)
0V~6V 25mA 2V~6V SOP-16 LED Drivers ICs
SOP-16RoHSActive
BCD-to-Seven-Segment Decodes/Drivers
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC247DR(LX)
- Store part #
- C24833610
- Package / case
- SOP-16
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,165 in stock
#C24833610
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.47 | ₹40.47 |
| 10+ | ₹35.39 | ₹353.90 |
| 30+ | ₹33.15 | ₹994.50 |
| 100+ | ₹30.31 | ₹3,031.00 |
| 500+ | ₹29.09 | ₹14,545.00 |
| 1,000+ | ₹28.47 | ₹28,470.00 |
1 × ₹40.47
₹40.47
excl. GST
₹47.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC247DR(LX)
₹40.47 for 1 + GST
Specifications
- Output Voltage
- 0V~6V
- Operating temperature
- -40℃~+125℃
- Output Current
- 25mA
- Voltage - Input(DC)
- 2V~6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.276 g
Overview
The SN74HC/HCT247 feature active-low outputs designed for driving common-anode LEDs or incandescent indicators directly. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions.
Key features
- Supply voltage range: SN74HC247: 2V to 6V HCT247: 4.5V to 5.5V
- Input levels: SN74HC47: CMOS level HC247: TTL level
- Temperature range: -40 °C to +125 °C
- Packaging information: DIP16/SOP16/TSSOP16
