lingxingic

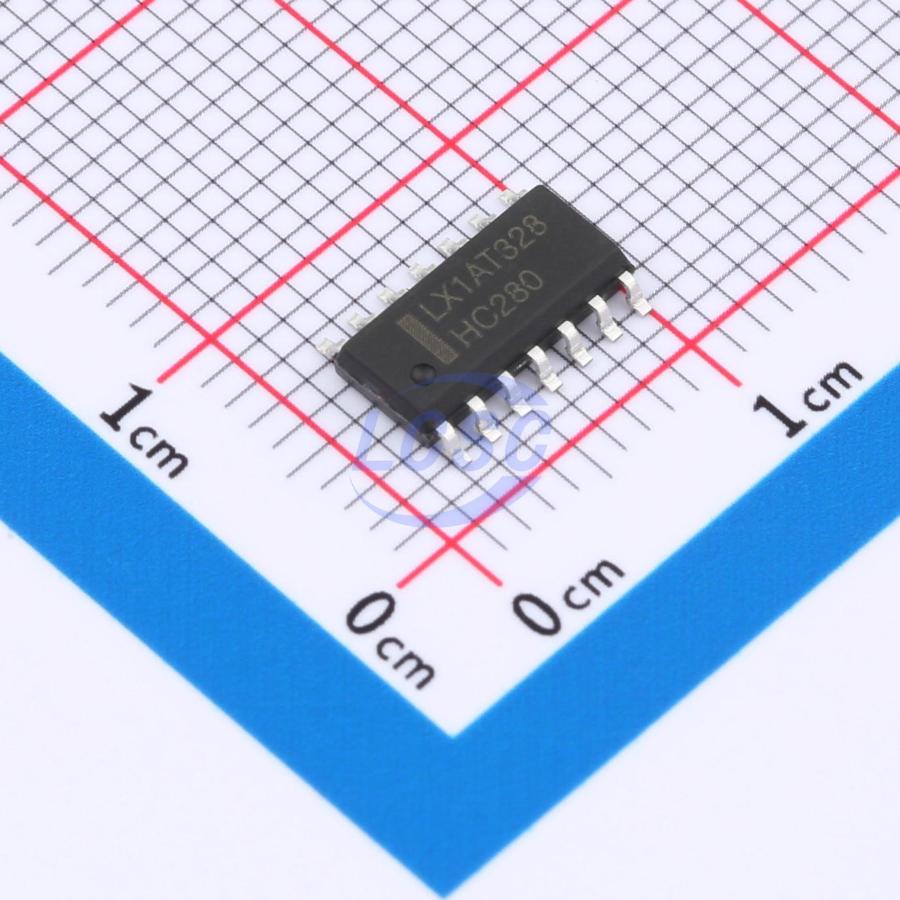

SN74HC280DR(LX)

2V~6V 9 SOP-14 Parity Generators and Checkers

SOP-14RoHSActive

9-bit Odd/Even Parity Generator/Checker

Manufacturer: lingxingic
Manufacturer part #: SN74HC280DR(LX)
Store part #: C22449660
Package / case: SOP-14
Category: Parity Generators and Checkers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,025 in stock

#C22449660

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.57	₹127.85
50+	₹22.12	₹1,106.00
150+	₹20.65	₹3,097.50
500+	₹18.80	₹9,400.00
2,500+	₹17.98	₹44,950.00
5,000+	₹17.49	₹87,450.00

Quantity (min 5, multiples of 5)

5 × ₹25.57

₹127.85

excl. GST

₹150.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC280DR(LX)

₹127.85 for 5 + GST

Specifications

Logic Type: Parity Generator/Checker
Voltage - Supply: 2V~6V
Operating Temperature: -40℃~+125℃
Series: 74HC
Number of Bits per Element: 9
Features: Odd parity generation;Even parity generation;Simultaneous odd/even parity output

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

The SN74HC/HCT280 is a 9-bit parity generator or checker. Both even and odd parity outputs are available. The even parity output (PE) is HIGH when an even number of data inputs (I0 to I8) is HIGH. The odd parity output (PO) is HIGH when an odd number of data inputs are HIGH. Expansion to larger word sizes is accomplished by tying the even outputs (PE) of up to nine parallel devices to the final stage data inputs. Inputs include clamp diodes. It enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
