XBLW

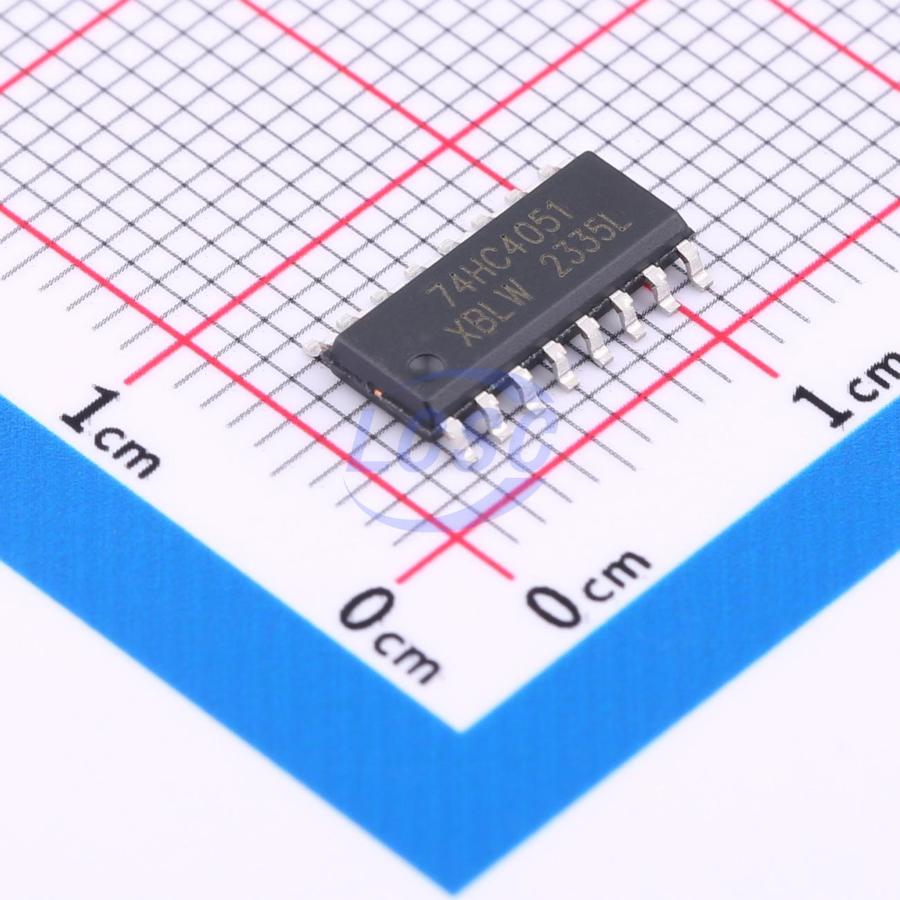

SN74HC4051DTR(XBLW)

IC SWITCH SOP-16

SOP-16ROHS CompliantActive

8-channel Analog Multiplexer/Demultiplexer

Manufacturer: XBLW
Manufacturer part #: SN74HC4051DTR(XBLW)
Store part #: C19708115
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,680 in stock

#C19708115

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.72	₹83.60
50+	₹13.07	₹653.50
150+	₹11.25	₹1,687.50
500+	₹9.88	₹4,940.00
2,500+	₹8.78	₹21,950.00
5,000+	₹8.24	₹41,200.00

Quantity (min 5, multiples of 5)

5 × ₹16.72

₹83.60

excl. GST

₹98.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC4051DTR(XBLW)

₹83.60 for 5 + GST

Specifications

Operating Temperature: -55℃~+125℃
Number of Channels: 8
Ron: 270Ω@4.5V
Voltage - Supply: 2V~6V
Propagation Delay: 10ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.288 g

Overview

The SN74HC4051 is a single-pole, eight-throw analog switch designed for analog or digital 8:1 multiplexer/demultiplexer applications. The device features three digital select inputs, eight independent inputs/outputs, one common input/output, and a digital enable input. When the enable input is high, the switch turns off. The inputs incorporate clamping diodes, allowing the use of current-limiting resistors to interface inputs to voltages exceeding VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range: -5V to 5V
Low on-resistance: 80Ω typical at VCC - VEE = 4.5V; 70Ω typical at VCC - VEE = 6.0V; 60Ω typical at VCC - VEE = 9.0V
Logic level translation: enables 5V logic to interface with ±5V analog signals
Built-in break-before-make function
Operating temperature range: -40°C to +125°C
Package options: DIP-16, SOP-16, TSSOP-16
