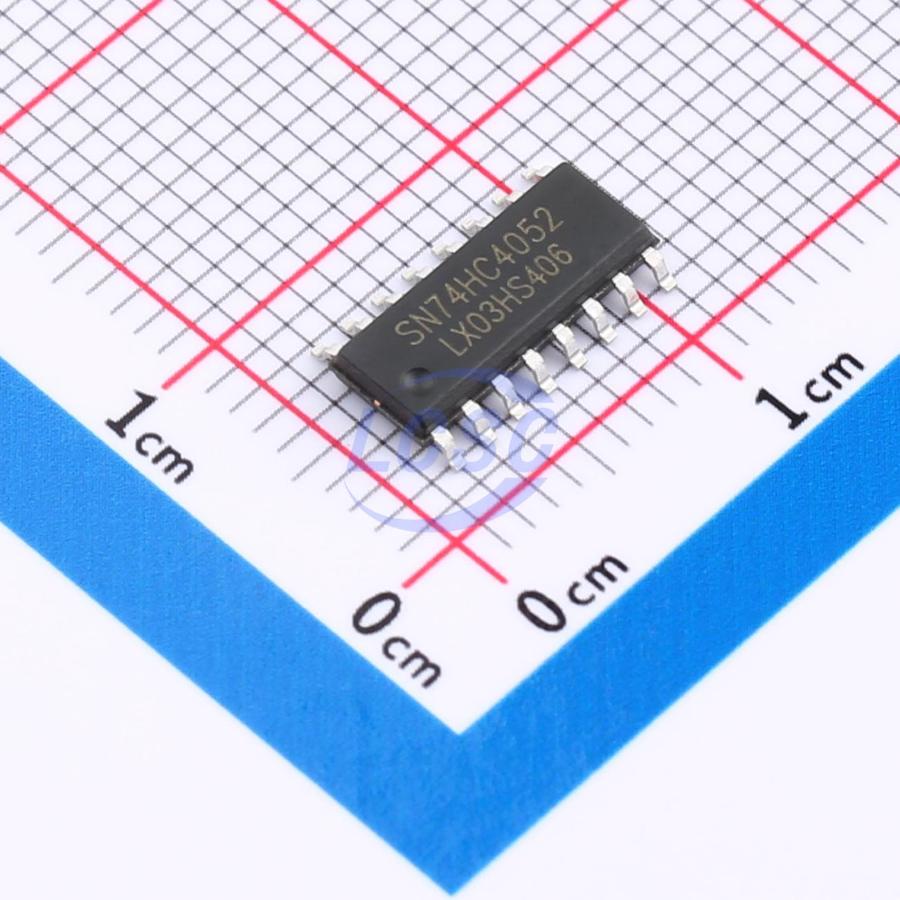

SN74HC4052D(LX)

4 3V~9V 80Ω SOP-16 Analog Switches, Multiplexers, Demultiplexers

SOP-16RoHSActive

Dual 4-channel Analog Multiplexer/Demultiplexer

Manufacturer: lingxingic
Manufacturer part #: SN74HC4052D(LX)
Store part #: C22374065
Package / case: SOP-16
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,230 in stock

#C22374065

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.60	₹83.00
50+	₹13.49	₹674.50
150+	₹11.95	₹1,792.50
500+	₹10.78	₹5,390.00
2,500+	₹8.88	₹22,200.00
4,000+	₹8.41	₹33,640.00

Quantity (min 5, multiples of 5)

5 × ₹16.60

₹83.00

excl. GST

₹97.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74HC4052D(LX)

₹83.00 for 5 + GST

Specifications

Features: Bidirectional analog channel;Level shifting
Operating Temperature: -40℃~+105℃
Number of Channels: 4
Voltage - Supply: 3V~9V
Ron: 80Ω
Propagation Delay: 5ns
Con: 5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.248 g

Overview

The SN74HC/HCT4052 is a dual single-pole quad-throw analog switch (2×SP4T) suitable for use in analog or digital 4:1 multiplexer/demultiplexer applications. Each switch features four independent inputs/outputs (nY0, nY1, nY2 and nY3) and a common input/output (nZ). A digital enable input (E) and two digital select inputs (S0 and S1) are common to both switches. When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Applications

Analog multiplexing and demultiplexing
Digital multiplexing and demultiplexing
Signal gating

Key features

Wide analog input voltage range from -5 V to +5 V
Low ON resistance: - 80 Ω (typical) at VCC - VEE = 4.5 V; - 70 Ω (typical) at ΔVCC - VEE = 6.0 V; - 60 Ω (typical) at VCC - VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ±5 V analog signals
Typical “break before make” built-in
Input levels: – For 74HC4052: CMOS level; – For 74HCT4052: TTL level
Specified from -40 °C to +105 °C
Packaging information: DIP16/SOP16/SSOP16/TSSOP16
