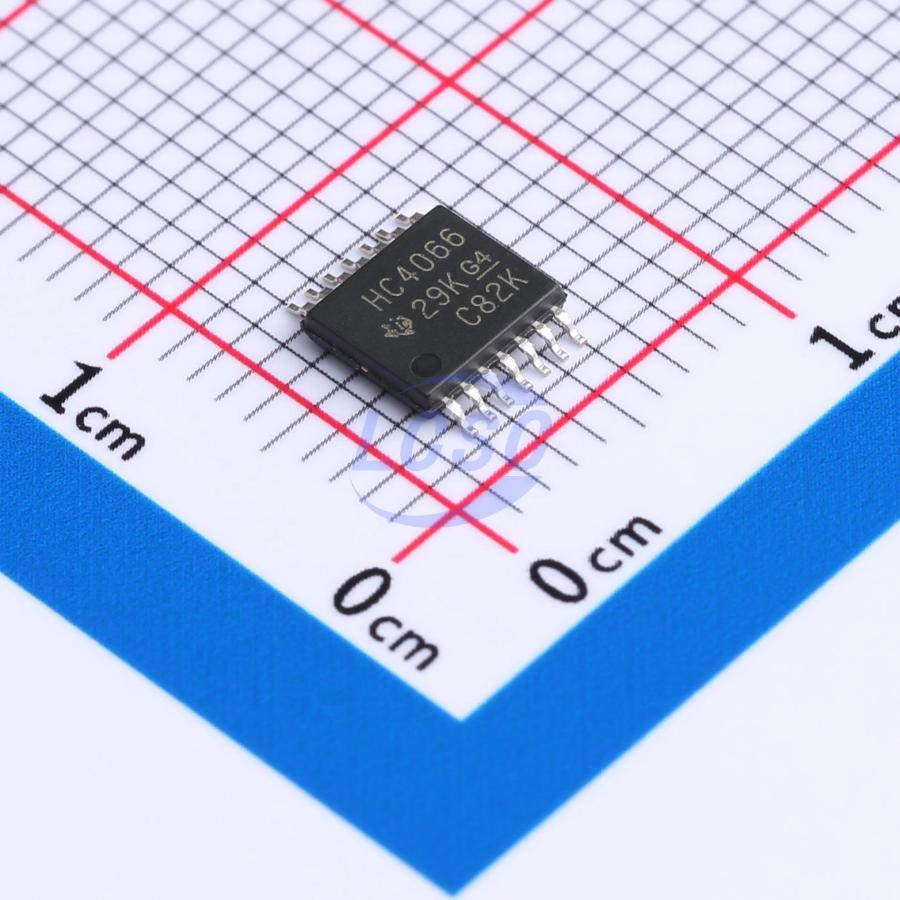

SN74HC4066PWR
IC SWITCH 1:1 50Ω TSSOP-14
TSSOP-14ROHS CompliantActive
SN74HC4066 Quad Bilateral Analog Switches
- Manufacturer
- TI
- Manufacturer part #
- SN74HC4066PWR
- Store part #
- C2651899
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,575 in stock
#C2651899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.19 | ₹200.95 |
| 50+ | ₹31.49 | ₹1,574.50 |
| 150+ | ₹27.76 | ₹4,164.00 |
| 500+ | ₹23.11 | ₹11,555.00 |
| 2,000+ | ₹20.00 | ₹40,000.00 |
| 4,000+ | ₹18.76 | ₹75,040.00 |
5 × ₹40.19
₹200.95
excl. GST
₹237.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC4066PWR
₹200.95 for 5 + GST
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 50Ω
- Voltage - Supply
- 2V~6V
- Number of Channels
- 4
- Propagation Delay
- 10ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The SN74HC4066 is a silicon-gate CMOS quad analog switch designed to handle both analog and digital signals. Each switch allows bidirectional transmission of signals with amplitudes up to 6V (peak).
Applications
- Analog signal switching/multiplexing: signal gating, modulators, squelch control, demodulators, choppers, commutating switches
- Digital signal switching/multiplexing: audio and video signal routing
- Transmission gate logic implementation
- A/D and D/A conversion
- Digitally controlled frequency, impedance, phase, and analog signal gain
- Motor speed control
- Battery chargers
- DC/DC converters
Key features
- Wide operating voltage range: 2V to 6V
- Typical switch enable time: 18ns
- Low power consumption, ICC max 20μA
- Low input current, max 1μA
- High linearity
- High switch output voltage ratio
- Low inter-switch crosstalk
- Low on-resistance: typical 50Ω at VCC = 6V
- Individual switch control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC4066ADTR2G#C233537onsemi · TSSOP-14 | onsemi | TSSOP-14 | 40 | ₹89.79 · 40 in stock | View |
 | 74VHC4066AFT(BJ)#C7421294TOSHIBA · TSSOP14B | TOSHIBA | TSSOP14B | 100 | ₹251.21 · 100 in stock | View |
 | MAX4614EUD+T#C2673729MAXIM · TSSOP-14 | MAXIM | TSSOP-14 | 54 | ₹1,351.06 · 54 in stock | View |
 | RS2268XQ#C5372474RUNIC · TSSOP-14 | RUNIC | TSSOP-14 | 2,450 | ₹45.86 · 2,450 in stock | View |
 | 74LVC4066PW-Q100J#C548794Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 95 | ₹109.07 · 95 in stock | View |
