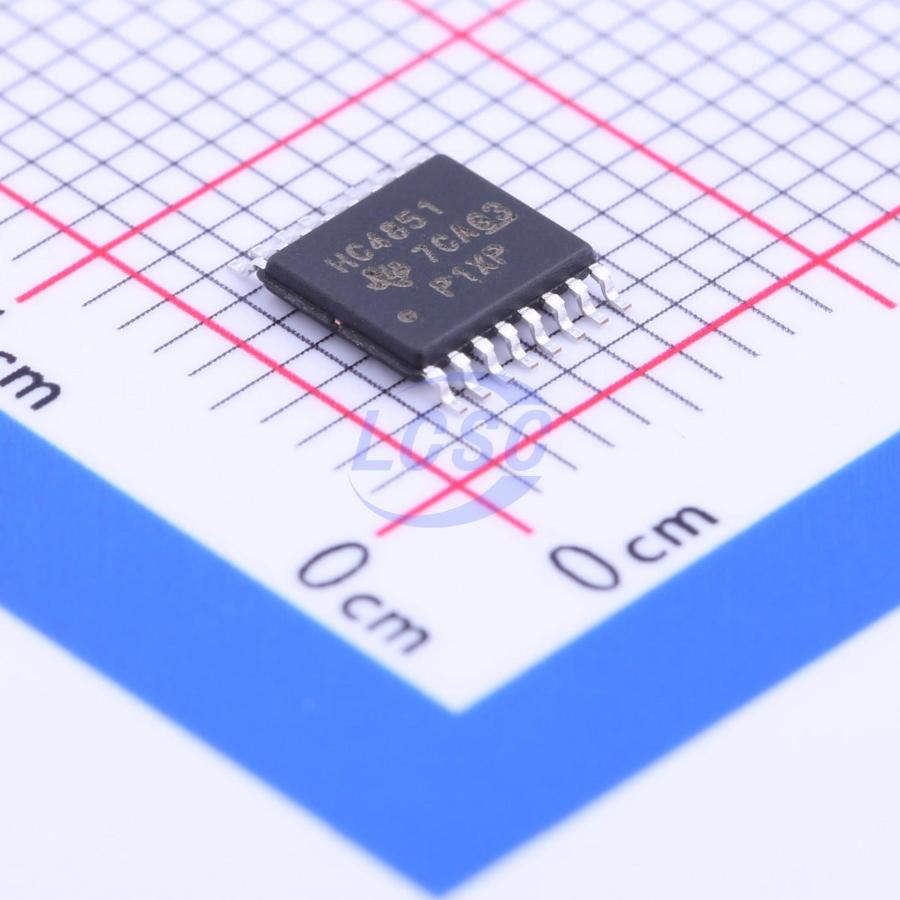

SN74HC4851PWR TI
TI

SN74HC4851PWR

195Ω 2V~6V 8 TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS3 CompliantActive

8-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER

Manufacturer
TI
Manufacturer part #
SN74HC4851PWR
Store part #
C110545
Package / case
TSSOP-16
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,574 in stock

#C110545

Stock & price checked 5 days ago

QuantityUnit pricePack price
1+₹52.28₹52.28
10+₹41.65₹416.50
30+₹36.42₹1,092.60
100+₹31.74₹3,174.00
500+₹30.47₹15,235.00
1,000+₹29.76₹29,760.00

1 × ₹52.28

₹52.28

excl. GST

₹61.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,000 per reel

SN74HC4851PWR

₹52.28 for 1 + GST

Specifications

Features
Fault protection
Operating Temperature
-40℃~+125℃
Ron
195Ω
Voltage - Supply
2V~6V
Number of Channels
8
Propagation Delay
10ns

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
2,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.183 g

Overview

This eight-channel CMOS analog multiplexer/demultiplexer is pin compatible with the ’4051 function and, additionally, features injection-current effect control, which has excellent value in automotive applications where voltages in excess of normal supply voltages are common. The injection-current effect control allows signals at disabled analog input channels to exceed the supply voltage without affecting the signal of the enabled analog channel. This eliminates the need for external diode/resistor networks typically used to keep the analog channel signals within the supply-voltage range.

Applications

  • automotive applications

Key features

  • Injection-Current Cross Coupling <1mV/mA
  • Low Crosstalk Between Switches
  • Pin Compatible With SN74HC4051, SN74LV4051A, and CD4051B
  • 2-V to 6-V VCC Operation
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)
  • 1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

SN74HC4851QPWRG4Q1#C1879680TI · TSSOP-16₹71.79 · 74 in stockView
SN74HC4851QPWRQ1#C2673391TI · TSSOP-16₹49.32 · 1,199 in stockView
RS2260XTSS16#C5372472RUNIC · TSSOP-16₹32.54 · 2,505 in stockView
TMUX1308AQPWRQ1#C39041466TI · TSSOP-16₹49.94 · 873 in stockView
TPW3188Q-TS3R-S#C389735173PEAK · TSSOP-16₹78.36 · 210 in stockView
