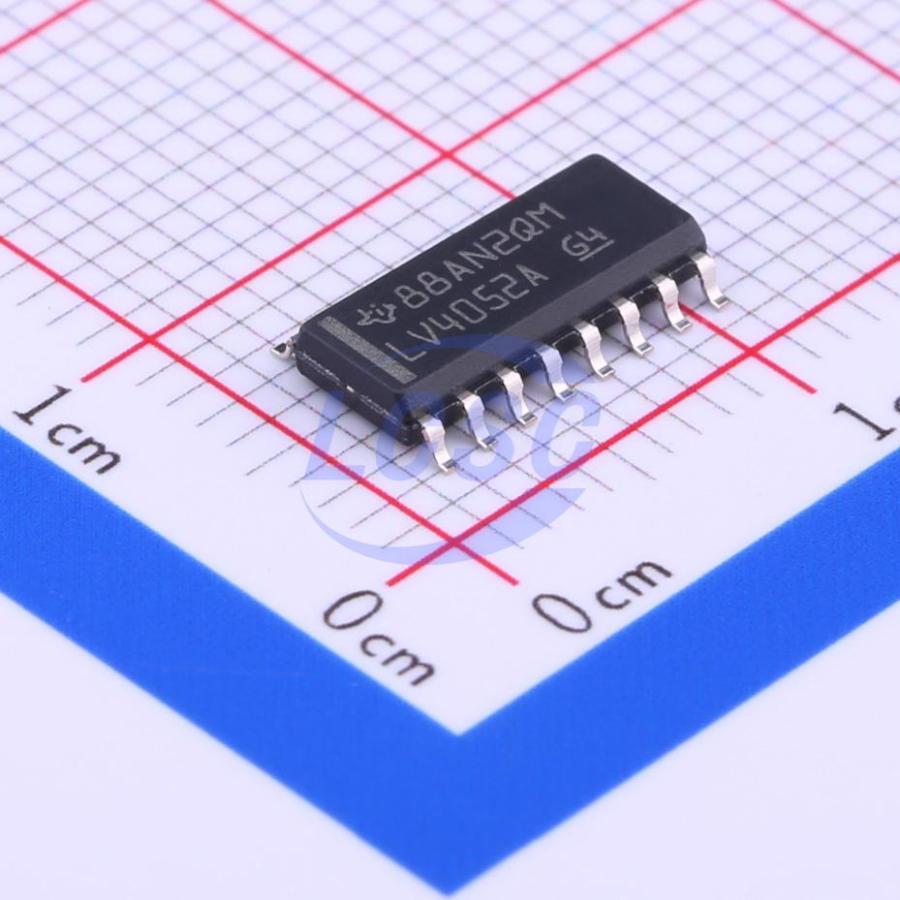

SN74LV4052ADR TI
TI

SN74LV4052ADR

4 2V~5.5V 25Ω SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS

SOIC-16ROHS3 CompliantActive

Dual 4-Channel Analog Multiplexers and Demultiplexers

Manufacturer
TI
Manufacturer part #
SN74LV4052ADR
Store part #
C273641
Package / case
SOIC-16
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,215 in stock

#C273641

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹95.11₹475.55
50+₹84.28₹4,214.00
150+₹79.63₹11,944.50
500+₹73.84₹36,920.00
2,500+₹68.97₹1,72,425.00
5,000+₹67.42₹3,37,100.00

5 × ₹95.11

₹475.55

excl. GST

₹561.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,500 per reel

SN74LV4052ADR

₹475.55 for 5 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+85℃
Number of Channels
4
Voltage - Supply
2V~5.5V
Ron
25Ω
Propagation Delay
7ns
Con
17pF

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
2,500 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.255 g

Overview

The SN74LV4052A device is a dual, 4-channel CMOS analog multiplexer and demultiplexer that is designed for 2-V to 5.5-V VCC operation. The SN74LV4052A device handles both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction.

Applications

  • Telecomunications
  • Infotainment
  • Signal Gating and Isolation
  • Home Appliances
  • Programmable Logic Circuits
  • Modulation and Demodulation

Key features

  • 2-V to 5.5-V VCC Operation
  • Fast Switching
  • High On-Off Output-Voltage Ratio
  • Low Crosstalk Between Switches
  • Extremely Low Input Current
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22:
  • 2000-V Human-Body Model (A114-A)
  • 1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

AiP74LV4052SA16.TR#C51940047Wuxi I-core Elec · SOP-16₹33.10 · 400 in stockView
SN74HC4852DR#C2673094TI · SOIC-16₹45.99 · 7 in stockView
MC74HC4852ADR2G#C904052onsemi · SOIC-16₹55.54 · 84 in stockView
SN74HC4852D#C1546142TI · SOIC-16Price on requestQuote
MC74LVXT4052DG#C906881onsemi · SOIC-16Price on requestQuote
