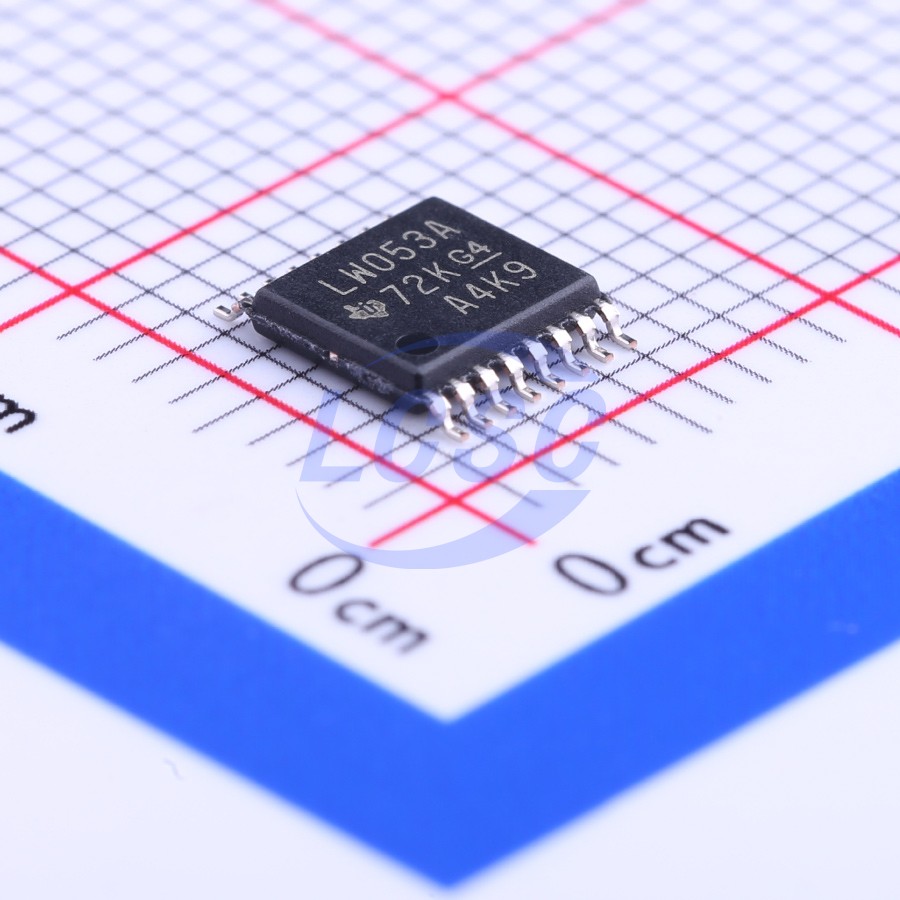

SN74LV4053APWR TI
TI

SN74LV4053APWR

3 2V~5.5V 23Ω TSSOP-16 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-16ROHS CompliantActive

TRIPLE 2-CHANNEL ANALOG MULTIPLEXERS/DEMULTIPLEXERS

Manufacturer
TI
Manufacturer part #
SN74LV4053APWR
Store part #
C132051
Package / case
TSSOP-16
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,555 in stock

#C132051

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹36.21₹181.05
50+₹29.08₹1,454.00
150+₹26.02₹3,903.00
500+₹22.20₹11,100.00
2,000+₹19.42₹38,840.00
4,000+₹18.40₹73,600.00

5 × ₹36.21

₹181.05

excl. GST

₹213.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 2,000 per reel

SN74LV4053APWR

₹181.05 for 5 + GST

Specifications

Features
Bidirectional analog channel
Operating Temperature
-40℃~+85℃
Number of Channels
3
Voltage - Supply
2V~5.5V
Ron
23Ω
Propagation Delay
900ps

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
2,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.183 g

Overview

These triple 2-channel CMOS analog multiplexers/demultiplexers are designed for 2-V to 5.5-V VCC operation. The ’LV4053A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

  • signal gating
  • chopping
  • modulation or demodulation (modem)
  • signal multiplexing for analog-to-digital and digital-to-analog conversion systems

Key features

  • 2-V to 5.5-V VCC Operation
  • Support Mixed-Mode Voltage Operation on All Ports
  • High On-Off Output-Voltage Ratio
  • Low Crosstalk Between Switches
  • Individual Switch Controls
  • Extremely Low Input Current
  • Latch-Up Performance Exceeds 250 mA Per JESD 17
  • ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)

Alternatives

Similar parts — check the datasheet before substituting.

SN74LV4053ATPWREP#C2673323TI · TSSOP-16₹452.64 · 935 in stockView
SN74LV4053ATPWRQ1#C1879679TI · TSSOP-16₹68.94 · 413 in stockView
74VHC4053AFT#C2673469TOSHIBA · TSSOP-16-175mil₹41.16 · 2,505 in stockView
74VHC4053AFT(BJ)#C7421293TOSHIBA · TSSOP16B₹28.96 · 60 in stockView
CD74HC4053PWR#C6546TI · TSSOP-16₹92.48 · 1,883 in stockView
