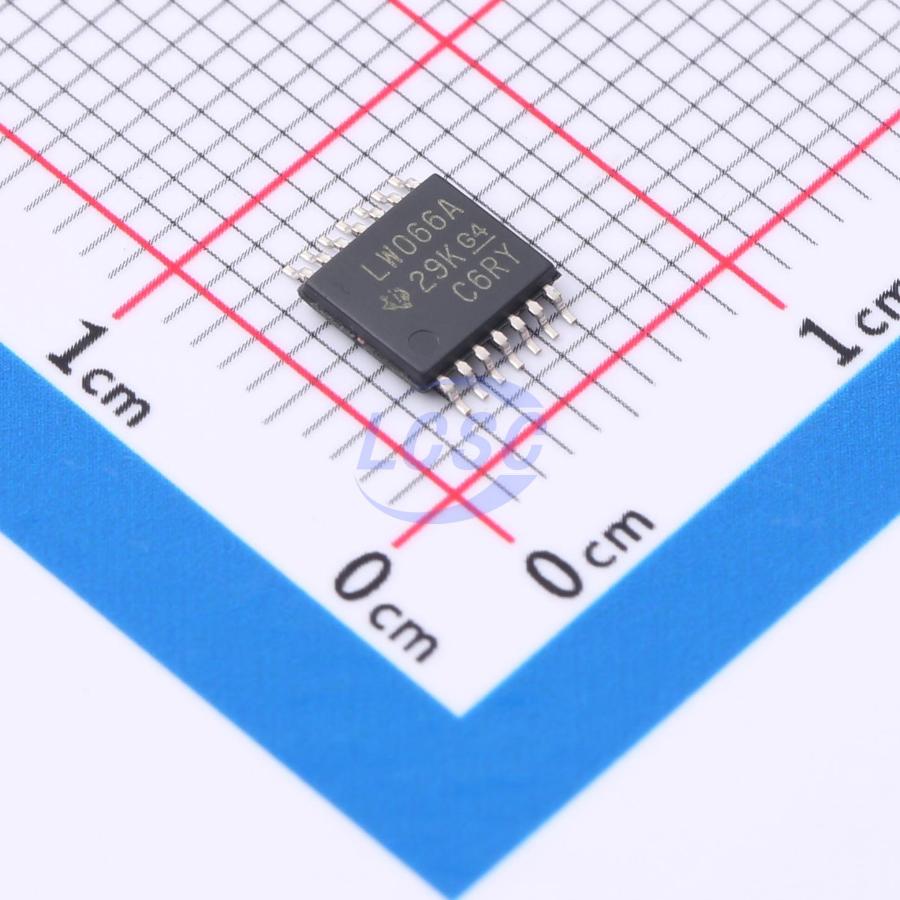

SN74LV4066APWR

2V~5.5V 4 21Ω TSSOP-14 Analog Switches, Multiplexers, Demultiplexers RoHS

TSSOP-14ROHS3 CompliantActive

QUADRUPLE BILATERAL ANALOG SWITCHES

Manufacturer: TI
Manufacturer part #: SN74LV4066APWR
Store part #: C2673269
Package / case: TSSOP-14
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,195 in stock

#C2673269

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹46.04	₹230.20
50+	₹36.12	₹1,806.00
150+	₹31.87	₹4,780.50
500+	₹26.55	₹13,275.00
2,000+	₹24.20	₹48,400.00
4,000+	₹22.78	₹91,120.00

Quantity (min 5, multiples of 5)

5 × ₹46.04

₹230.20

excl. GST

₹271.64 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74LV4066APWR

₹230.20 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Voltage - Supply: 2V~5.5V
Number of Channels: 4
Ron: 21Ω
Propagation Delay: 7ns
Con: 5.5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.25 g

Overview

This quadruple silicon-gate CMOS analog switch is designed for 2-V to 5.5-V VCC operation. These switches are designed to handle both analog and digital signals. Each switch permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Each switch section has its own enable-input control (C). A high-level voltage applied to C turns on the associated switch section.
