lingxingic

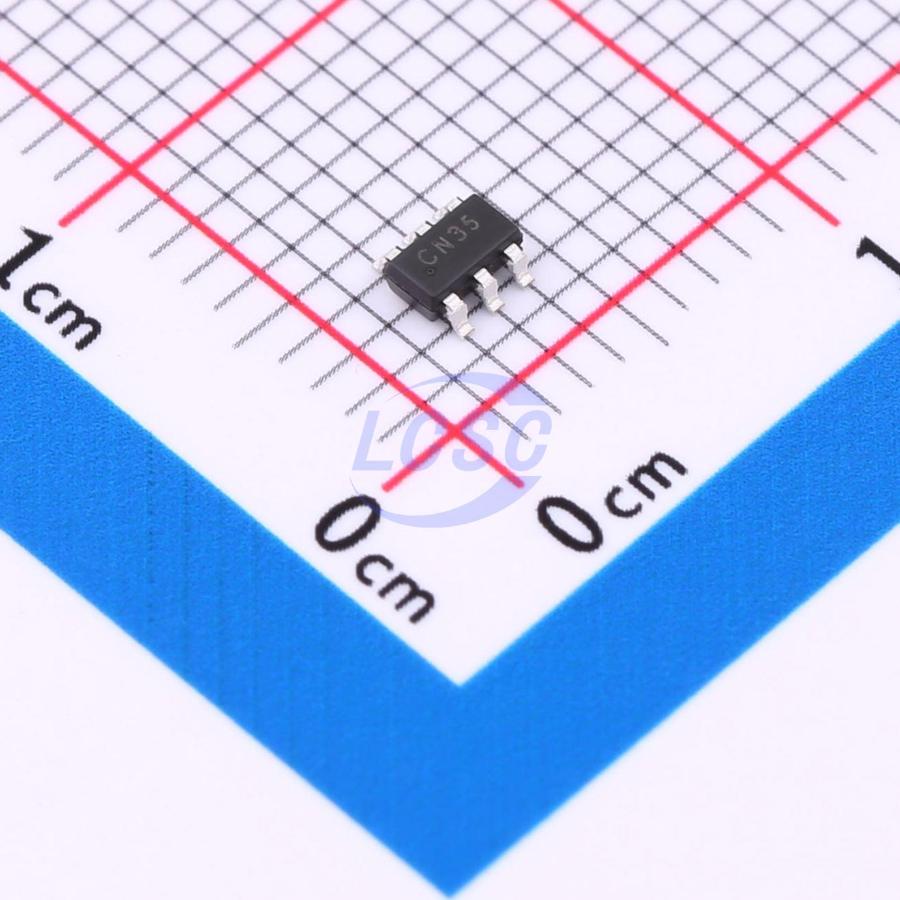

SN74LVC1G3157DB(LX)

1 Circuit IC SWITCH 2:1 6Ω SOT-23-6

SOT-23-6RoHSActive

Single-pole double-throw (SPDT) analog switch

Manufacturer: lingxingic
Manufacturer part #: SN74LVC1G3157DB(LX)
Store part #: C22469947
Package / case: SOT-23-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,850 in stock

#C22469947

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹7.34	₹73.40
100+	₹5.81	₹581.00
300+	₹5.04	₹1,512.00
3,000+	₹4.46	₹13,380.00
6,000+	₹4.00	₹24,000.00
9,000+	₹3.77	₹33,930.00

Quantity (min 10, multiples of 10)

10 × ₹7.34

₹73.40

excl. GST

₹86.61 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G3157DB(LX)

₹73.40 for 10 + GST

Specifications

Features: Bidirectional analog channel;Glitch-free switching
Operating Temperature: -40℃~+125℃
Ron: 6Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 600ps
Con: 18pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.053 g

Overview

The SN74LVC1G3157 provides a single analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1), and a common input/output (Z). The Schmitt-trigger action on the select input allows the circuit to handle slow input rise and fall times across the full VCC range of 1.65V to 5.5V.

Key features

Supply voltage range: 1.65V~5.5V
Ultra-low on-resistance: 7.5Ω (typ.) at VCC = 2.7V; 6.5Ω (typ.) at VCC = 3.3V; 6Ω (typ.) at VCC = 5V
Switching current capability: 132mA
Break-before-make switching
CMOS low power consumption
TTL interface compatibility at 3.3V
Control inputs accept voltages up to 5.5V
Operating temperature range: -40℃~+125℃
Package: SOT-23-6/SOT-363/XSON6
