Tudi

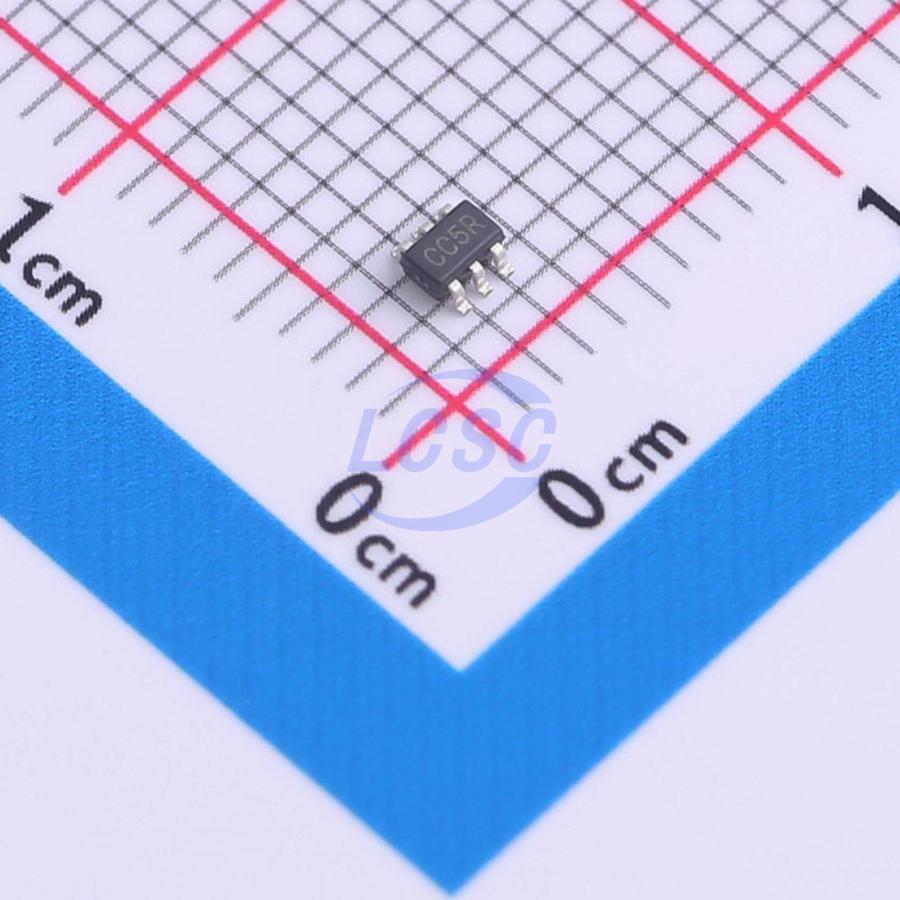

SN74LVC1G3157DBVR-TUDI

4Ω@4.5V 1 1.8V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers

SC-70-6RoHSActive

Low Voltage, SPDT 4.oQ Analog Switch

Manufacturer: Tudi
Manufacturer part #: SN74LVC1G3157DBVR-TUDI
Store part #: C36533656
Package / case: SC-70-6
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,060 in stock

#C36533656

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹10.02	₹100.20
100+	₹7.94	₹794.00
300+	₹6.89	₹2,067.00
1,000+	₹6.13	₹6,130.00
5,000+	₹5.32	₹26,600.00
10,000+	₹5.01	₹50,100.00

Quantity (min 10, multiples of 10)

10 × ₹10.02

₹100.20

excl. GST

₹118.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G3157DBVR-TUDI

₹100.20 for 10 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -10℃~+85℃
Ron: 4Ω@4.5V
Number of Channels: 1
Voltage - Supply: 1.8V~5.5V
Propagation Delay: 300ps
Con: 15.5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.052 g

Overview

The 74LVC1G3157 is a low on-resistance (4.0Ω), fast SPDT CMOS switch operating over a +1.8V to +5.5V supply range. The device is designed for low supply voltage, high-current signal gating, chopping, modulation or demodulation (modem), and speaker output in mobile phone applications. The device features a Break-Before-Make (BBM) function. The control input IN can withstand input drive signals up to 5.5V, independent of the supply voltage. All devices operate over a temperature range of -10°C to +125°C. The 74LVC1G3157 single-channel version is available in environmentally friendly SC70-6 and SOT23-6 packages.

Applications

Battery-powered devices
Wearable devices
Computer peripherals
Portable systems
Mobile phones

Key features

On-resistance: 4.0Ω (typical)
-3dB bandwidth: 300MHz
Single supply: ±1.8V ~ ±5.5V
Break-before-make switching
Rail-to-rail operation
Low quiescent current
TTL/CMOS compatible
Operating temperature: -10°C ~ +85°C
Small package: 74LVC1G3157 available in SOT23-6 and SC70-6 packages

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	FSA3157P6X#C36533658Tudi · SC-70-6	Tudi	SC-70-6	14,980	₹14.71 · 14,980 in stock	View
	NC7SB3157P6X#C36533657Tudi · SC-70-6	Tudi	SC-70-6	15,160	₹22.72 · 15,160 in stock	View
