SN74LVC1G3157DRYR
1 Circuit IC SWITCH 2:1 6Ω SON-6(1x1.4)
SON-6(1x1.4)ROHS3 CompliantActive

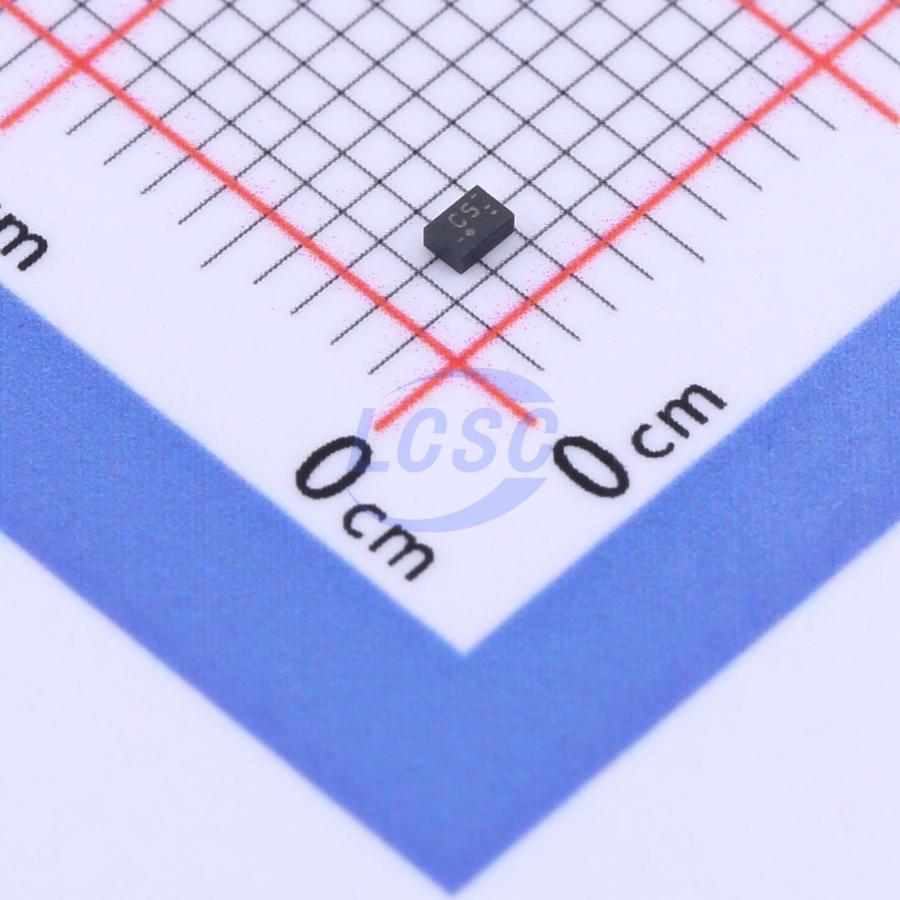

SN74LVC1G3157 SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G3157DRYR
- Store part #
- C2870968
- Package / case
- SON-6(1x1.4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,340 in stock
#C2870968
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.77 | ₹138.85 |
| 50+ | ₹22.36 | ₹1,118.00 |
| 150+ | ₹20.03 | ₹3,004.50 |
| 500+ | ₹17.13 | ₹8,565.00 |
| 2,500+ | ₹15.85 | ₹39,625.00 |
| 5,000+ | ₹15.07 | ₹75,350.00 |
5 × ₹27.77
₹138.85
excl. GST
₹163.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SN74LVC1G3157DRYR
₹138.85 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Level shifting
- Operating Temperature
- -40℃~+125℃
- Ron
- 6Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps
- Con
- 17.3pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
This single-channel single-pole double-throw (SPDT) analog switch is rated for operation at 1.65V to 5.5V VCC. The SN74LVC1G3157 handles both analog and digital signals, and allows signal transmission in either direction with amplitudes up to VCC (peak).
Applications
- Wearable and mobile devices
- Portable computing
- IoT
- Audio signal routing
- Remote radio units
- Portable medical devices
- Surveillance
- Home automation
- I2C/SPI/UART bus multiplexing
- Wireless charging
Key features
- ESD protection exceeds JESD 22 specification requirements
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
- 1.65V to 5.5V VCC operation
- Operable at 125°C
- Specified break-before-make switching
- Rail-to-rail signal handling
- Typical operating frequency of 340MHz at room temperature
- High-speed, typical 0.5ns
- Low on-resistance, typical 6Ω (VCC = 4.5V)
- Latch-up performance exceeds 100mA per JESD 78 Class II specification
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G3157FZ4-7#C526344DIODES · X2-DFN1410-6 | DIODES | X2-DFN1410-6 | On request | ₹22.94 · 0 in stock | View |
