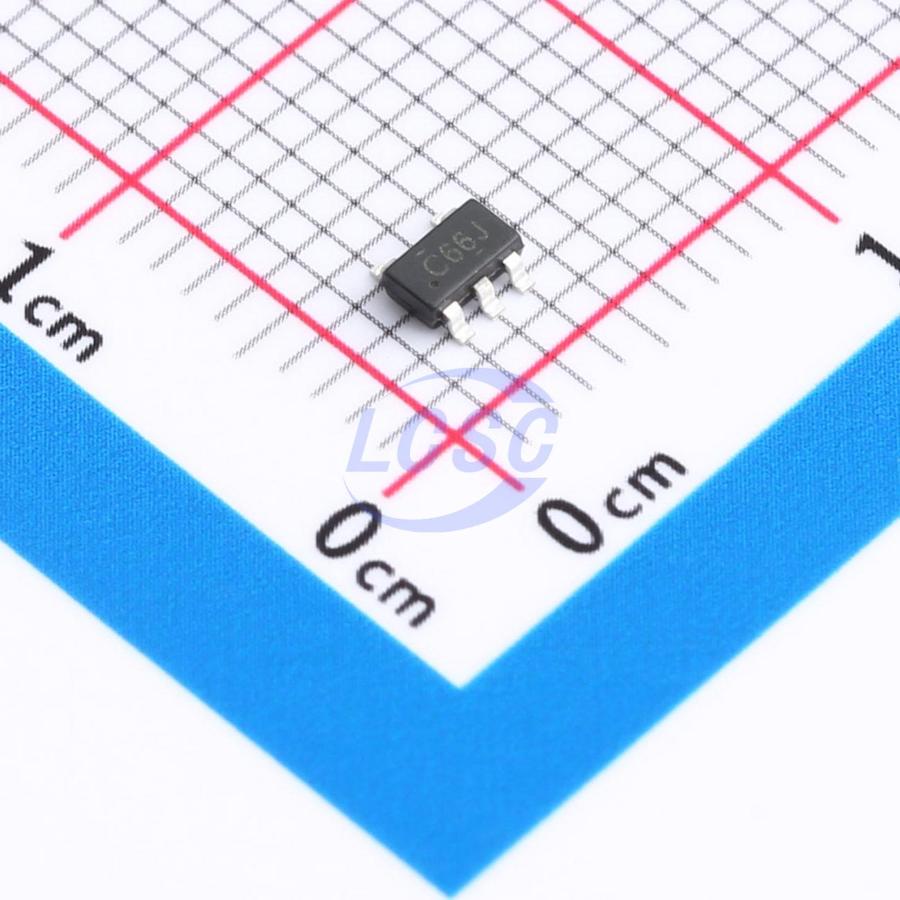

SN74LVC1G66DBVR-TP

5.5Ω@4.5V 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE BILATRAL ANALOG SWITCH

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74LVC1G66DBVR-TP
Store part #: C46472243
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

27,370 in stock

#C46472243

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
10+	₹5.48	₹54.80
100+	₹4.76	₹476.00
300+	₹4.41	₹1,323.00
3,000+	₹4.13	₹12,390.00
6,000+	₹3.92	₹23,520.00
9,000+	₹3.81	₹34,290.00

Quantity (min 10, multiples of 10)

10 × ₹5.48

₹54.80

excl. GST

₹64.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G66DBVR-TP

₹54.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+125℃
Ron: 5.5Ω@4.5V
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3ns
Con: 13pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The SN74LVC1G66 is a high-speed CMOS device. The SN74LVC1G66 has two data input/output pins (A and B) and an active HIGH enable input pin(C). The SN74LVC1G66 can handle both analog and digital signals. The signals can be transmitted in either direction when enable pin is high. The analog switch is off when enable pin is low.

Applications

Wireless Devices
Audio and Video Signal Routing
Portable Computing
Wearable Devices
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

Key features

Operation Voltage Range: 1.65~5.5V
Inputs Accept Voltages to 5.5V
Max tPD of 0.8 ns at 3.3V
High Degree of Linearity
ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) - 1000-V Charged-Device Model (C101)
