UMW

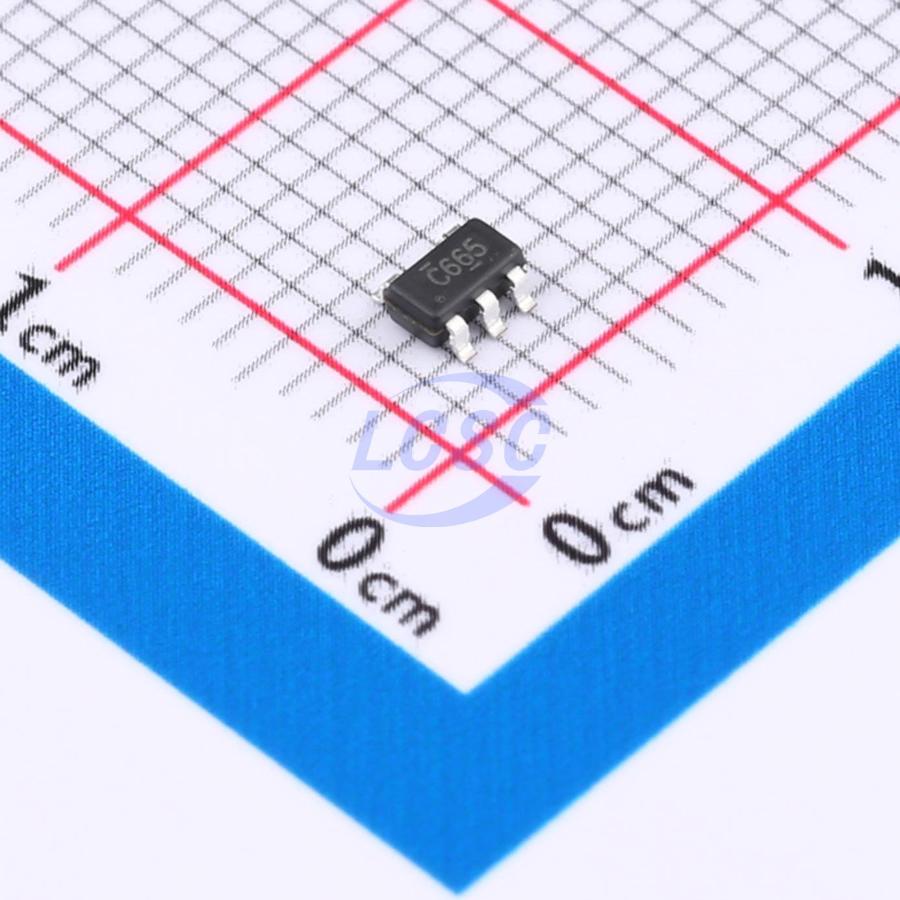

SN74LVC1G66DBVR(UMW)

5.5Ω 1 1.65V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-5ROHS CompliantActive

SN74LVC1G66 Single Analog Switch

Manufacturer: UMW
Manufacturer part #: SN74LVC1G66DBVR(UMW)
Store part #: C5375974
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,470 in stock

#C5375974

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.12	₹81.20
100+	₹6.24	₹624.00
300+	₹5.31	₹1,593.00
3,000+	₹4.60	₹13,800.00
6,000+	₹4.04	₹24,240.00
9,000+	₹3.76	₹33,840.00

Quantity (min 10, multiples of 10)

10 × ₹8.12

₹81.20

excl. GST

₹95.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC1G66DBVR(UMW)

₹81.20 for 10 + GST

Specifications

Features: Bidirectional analog channel;Level shifting
Operating Temperature: -40℃~+85℃
Ron: 5.5Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 4.2ns
Con: 13pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

This single-channel analog switch is designed for VCC operating voltages from 1.65 V to 5.5 V. The SN74LVC1G66 device can handle both analog and digital signals. The device allows bidirectional transmission of signals with amplitudes up to 5.5 V (peak). NanoFree package technology represents a major breakthrough in IC packaging concepts, using the die itself as the package.
