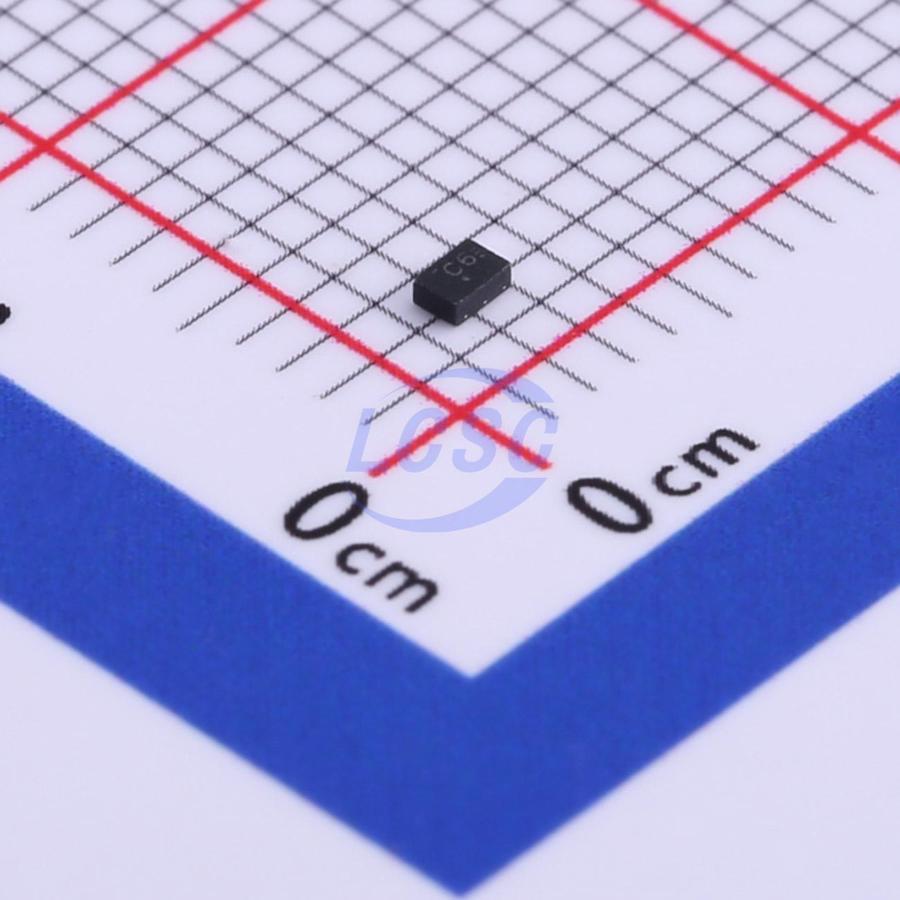

SN74LVC1G66DRYR

10Ω 1 1.65V~5.5V SON-6(1x1.4) Analog Switches, Multiplexers, Demultiplexers RoHS

SON-6(1x1.4)ROHS3 CompliantActive

Single Bilateral Analog Switch

Manufacturer: TI
Manufacturer part #: SN74LVC1G66DRYR
Store part #: C507245
Package / case: SON-6(1x1.4)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,180 in stock

#C507245

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
5+	₹22.66	₹113.30
50+	₹18.40	₹920.00
150+	₹16.33	₹2,449.50
500+	₹14.47	₹7,235.00
2,500+	₹13.96	₹34,900.00
5,000+	₹13.65	₹68,250.00

Quantity (min 5, multiples of 5)

5 × ₹22.66

₹113.30

excl. GST

₹133.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74LVC1G66DRYR

₹113.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 10Ω
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 600ps
Con: 13pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.01 g

Overview

This single analog switch is designed for 1.65-V to 5.5 VCC operation. The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V (peak). NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications

Wireless Devices
Audio and Video Signal Routing
Portable Computing
Wearable Devices
Signal Gating, Chopping, Modulation or Demodulation (Modem)
Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

Key features

Available in the Texas Instruments NanoFree Package
1.65-V to 5.5-VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 0.8 ns at 3.3 V
High On-Off Output Voltage Ratio
High Degree of Linearity
High Speed, Typically 0.5 ns (VCC = 3 V, CL = 50 pF)
Low ON-State Resistance, Typically 5.5 Ω (VCC = 4.5 V)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
