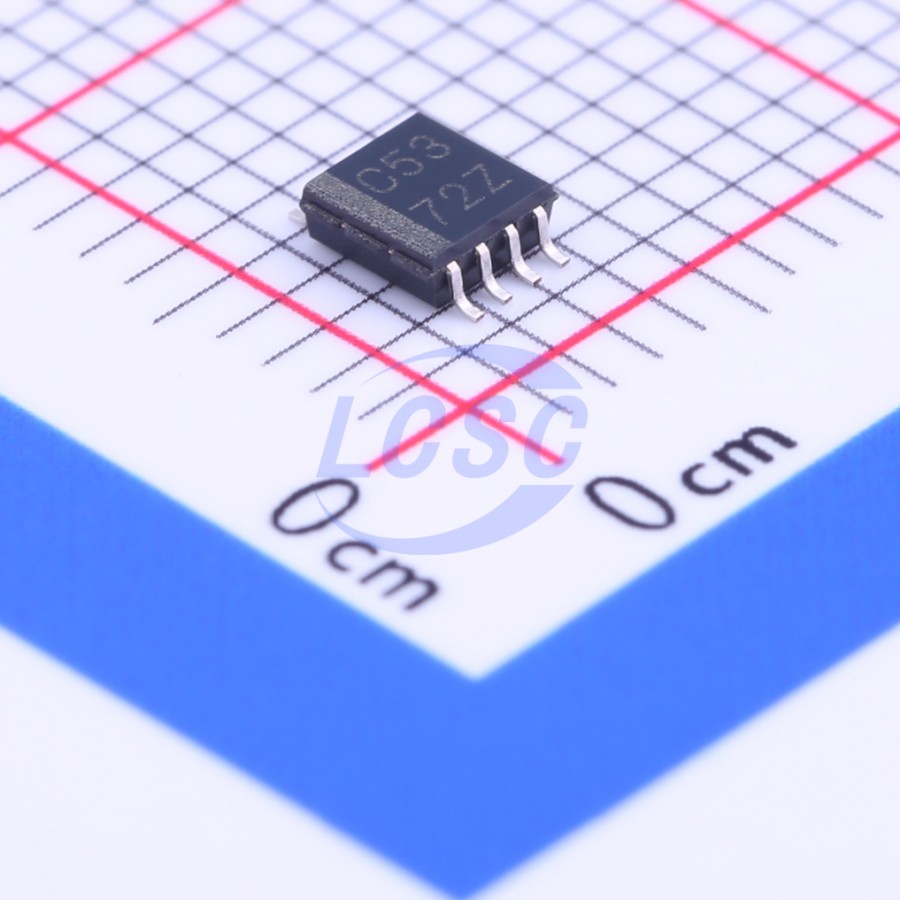

SN74LVC2G53DCTR

This single 2:1 analog multiplexer/demultiplexer is designed for 1.65-V to 5.5-V CC operation. The SN74LVC2G53 device can handle both analog and digital signals. This device permits signals with amplitudes of up to 5.5 V (peak) to be transmitted in either direction. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

• Wireless Devices
• Audio and Video Signal Routing
• Portable Computing
• Wearable Devices
• Signal Gating, Chopping, Modulation or Demodulation (Modem)
• Signal Multiplexing for Analog-to-Digital and Digital-to-Analog Conversion Systems

Key features

• Available in the NanoFree Package
• 1.65-V to 5.5-V CC Operation
• High On-Off Output Voltage Ratio
• High Degree of Linearity
• High Speed, Typically 0.5 ns (VCC = 3 V, CL = 50 pF)
• Low ON-State Resistance, Typically 6.5 Ω (VCC = 4.5 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
