TECH PUBLICDatasheet (PDF)

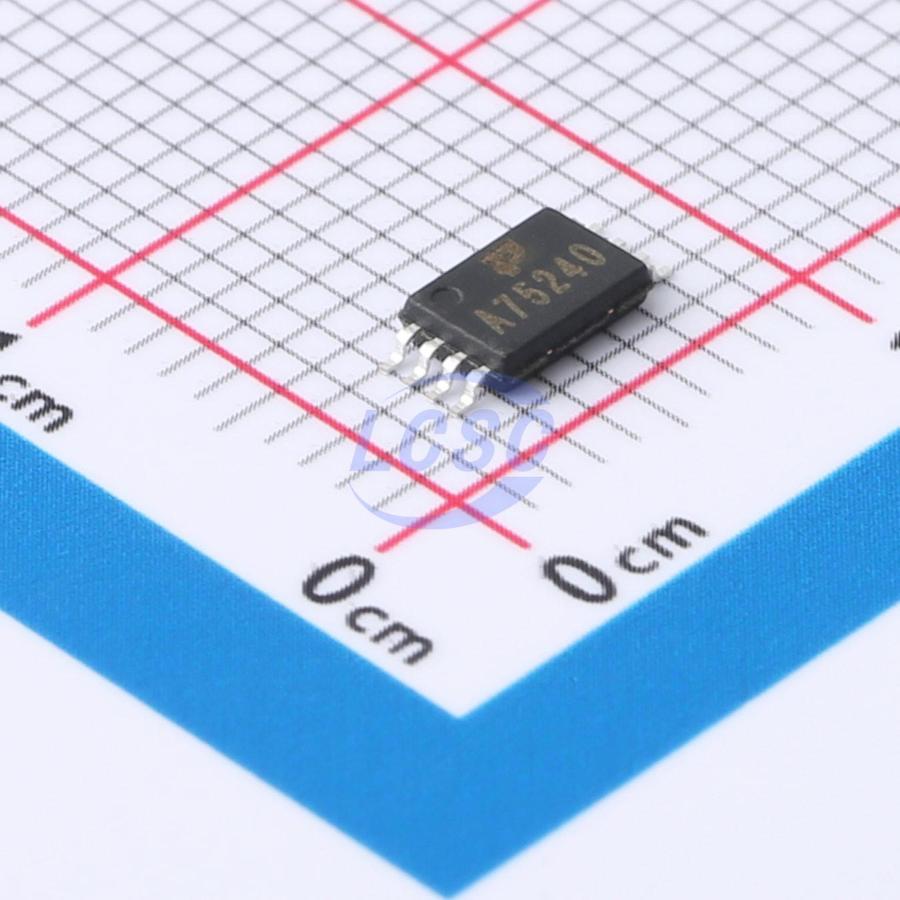

SN75240PWR-TP
14VC Clamp 9A@8/20us Ipp TSSOP-8
TSSOP-8RoHSActive
5VWM 14VC TSSOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN75240PWR-TP
- Store part #
- C7419955
- Package / case
- TSSOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,120 in stock
#C7419955
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.05 | ₹250.25 |
| 50+ | ₹38.95 | ₹1,947.50 |
| 150+ | ₹34.38 | ₹5,157.00 |
| 500+ | ₹28.51 | ₹14,255.00 |
| 2,000+ | ₹25.90 | ₹51,800.00 |
| 4,000+ | ₹24.16 | ₹96,640.00 |
5 × ₹50.05
₹250.25
excl. GST
₹295.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN75240PWR-TP
₹250.25 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 9A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
Applications
- USB full-speed host, HUB, or peripheral Ports
Key features
- Ultra low leakage: nA level
- Ultra low operating voltage: 5V
- Ultra low clamping voltage
- Complies with following standards:
- IEC61000-4-2 (ESD) immunity test Air discharge: ±25 kV Contact discharge: ±15 kV
- IEC61000-4-5 (Lightning) 9A (8/20 μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
