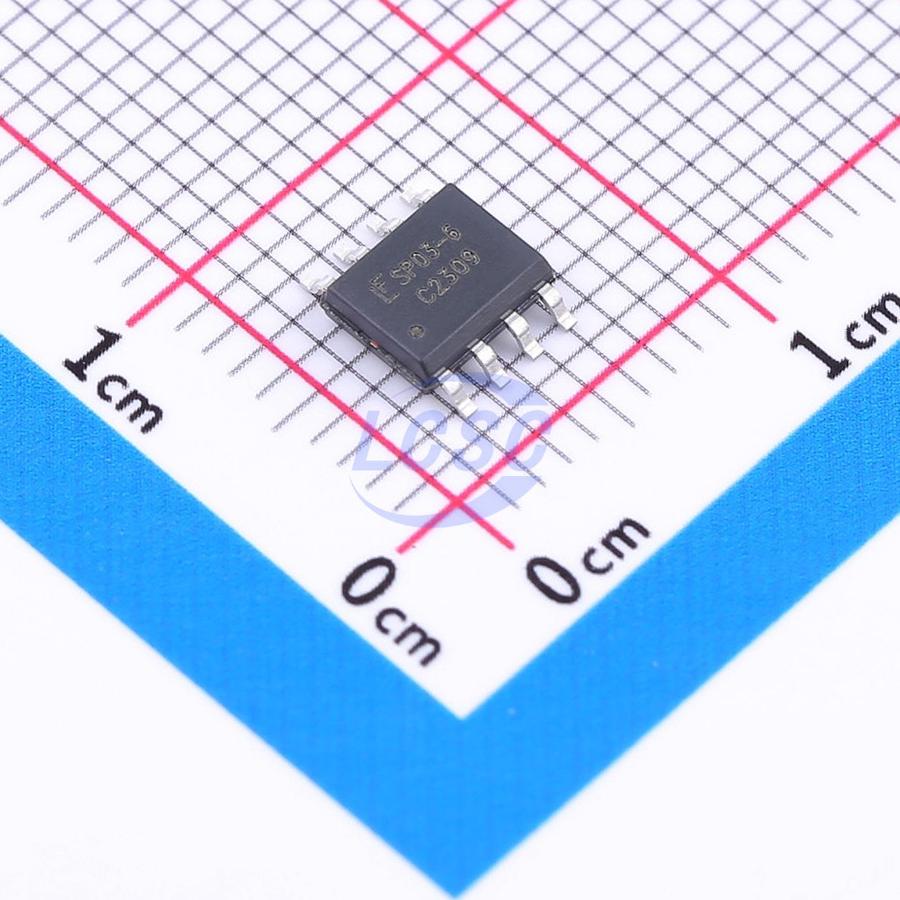

SP03-6BTG
20VC Clamp 150A@8/20us Ipp TVS DIODE SOIC-8
TVS DIODE 6VWM 20VC SOIC-8
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP03-6BTG
- Store part #
- C2766089
- Package / case
- SOIC-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C2766089
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.16 | ₹181.16 |
| 10+ | ₹151.87 | ₹1,518.70 |
| 30+ | ₹135.82 | ₹4,074.60 |
| 100+ | ₹117.59 | ₹11,759.00 |
| 500+ | ₹109.57 | ₹54,785.00 |
| 1,000+ | ₹105.88 | ₹1,05,880.00 |
1 × ₹181.16
₹181.16
excl. GST
₹213.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP03-6BTG
₹181.16 for 1 + GST
Specifications
- Clamping Voltage
- 20V
- Peak Pulse Current (Ipp)
- 150A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 2.8kW
- Voltage - Breakdown
- 6.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 25uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
This new broadband protection component provides overvoltage protection for applications such as 10/100/1000 BaseT Ethernet, T3/E3 DS3 interfaces, ADSL2+, and VDSL2+. This new protector combines the TVS diode element with a diode rectifer bridge to provide both longitudinal and differential protection in one package. This innovative design results in a capacitive loading characteristic that is log - linear with respect to the signal voltage across the device. This reduces intermodulation (IM) distortion caused by a typical solid - state protection solution.
Applications
- T1/E1 Line cards
- 10/100/1000 BaseT
- T3/E3 and DS3 Interfaces Ethernet
- STS - 1 Interfaces
Key features
- UL Recognized compound meeting flammability rating V - 0
- Lightning, 150A (8/20 as defined in IEC 61000 - 4 - 5 2nd Edition)
- Low clamping voltage
- RoHS - compliant and leadfree
- SOIC - 8 surface mount package (JEDEC MS - 012)
- Low insertion loss, loglinear capacitance
- Combined longitudinal and differential protection
- Clamping speed of nanoseconds
