TECH PUBLICDatasheet (PDF)

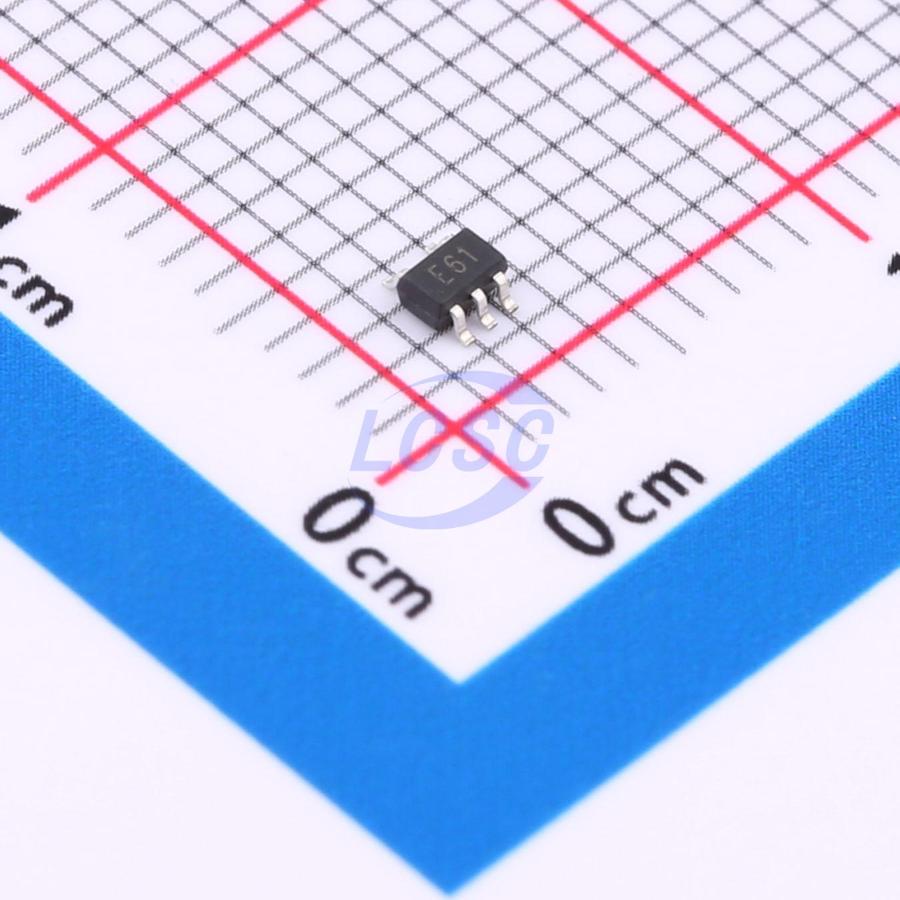

SP0504BAJTG
nan
SC-70-5RoHSActive
5VWM 14VC SC-70-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP0504BAJTG
- Store part #
- C19829473
- Package / case
- SC-70-5
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,390 in stock
#C19829473
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.69 | ₹86.90 |
| 100+ | ₹6.96 | ₹696.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.24 | ₹15,720.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.46 | ₹40,140.00 |
10 × ₹8.69
₹86.90
excl. GST
₹102.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP0504BAJTG
₹86.90 for 10 + GST
Specifications
- Clamping Voltage
- 11V;14V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Voltage - Breakdown
- 9V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Cell phone Handsets and Accessories
- Microprocessor Based Equipment
- Personal Digital Assistants (PDA's) and Pagers
- Desktops PC and Servers
- Notebook, Laptop, and Palmtop Computers
- Portable Instrumentation
Key features
- Ultralow leakage: nA level
- Low operating voltage: 5.5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000-4-5 (Lightning) 8A (8/20 μs)
- IEC 61000-4-4 (EFT) 40A (5/50 ns)
- ROHS Compliant
