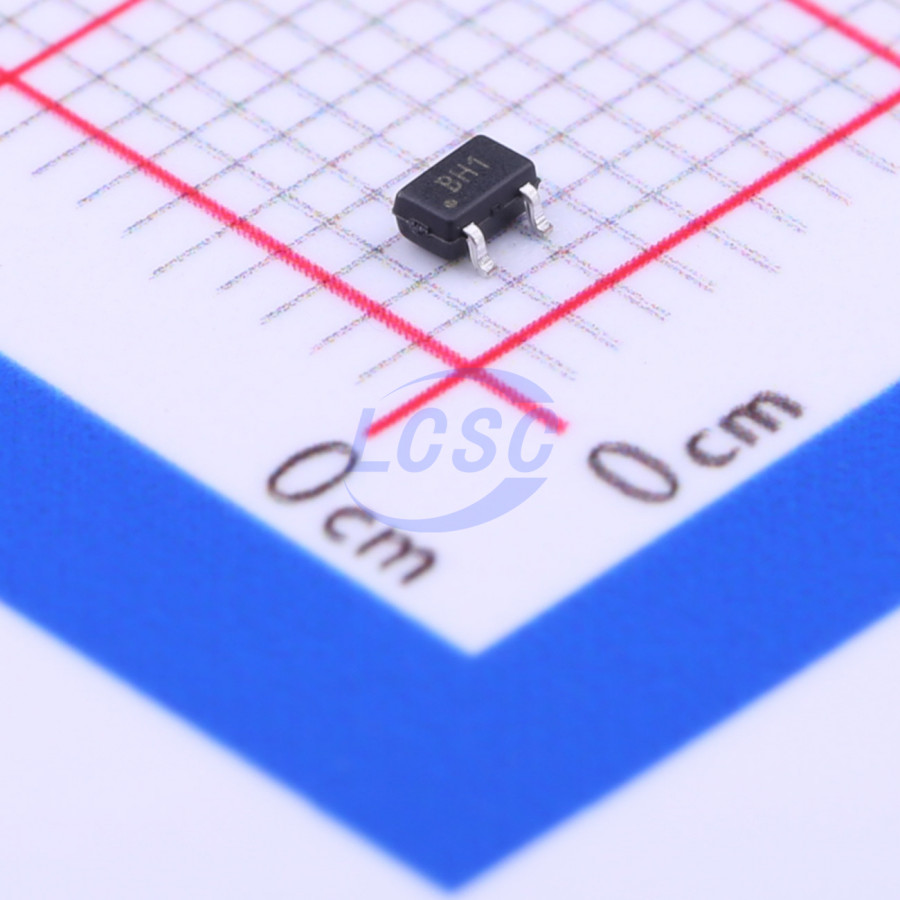

SP1002-01JTG
16VC Clamp 1A@8/20us Ipp TVS DIODE SC-70-3
TVS DIODE 6VWM 16VC SC-70-3
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP1002-01JTG
- Store part #
- C316001
- Package / case
- SC-70-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C316001
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.08 | ₹170.40 |
| 50+ | ₹27.06 | ₹1,353.00 |
| 150+ | ₹24.04 | ₹3,606.00 |
| 500+ | ₹20.29 | ₹10,145.00 |
| 3,000+ | ₹18.61 | ₹55,830.00 |
| 6,000+ | ₹17.61 | ₹1,05,660.00 |
5 × ₹34.08
₹170.40
excl. GST
₹201.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP1002-01JTG
₹170.40 for 5 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 1A@8/20us
- Voltage - Breakdown
- 8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Back-to-Back Zener diodes fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at the maximum level specifed in the IEC 61000-4- 2 international standard (Level 4, ±8 KV contact discharge) without performance degradation. Their very low loading capacitance also makes them ideal for protecting highspeed signal pins.
Applications
- Computer Peripherals
- LCD/PDP TVs
- Mobile Phones
- Set Top Boxes
- Digital Cameras
- DVD Players
- Desktops/Notebooks
- MP3/PMP
Key features
- Low capacitance of 5pF (TYP) I/O to I/O
- ESD protection of ±8 KV contact discharge, ± 75 kV air discharge, (Level 4, IEC 61000-4-2)
- EFT protection, IEC 61000-4-4, 40A (5/50ns)
- Low leakage current of 0.5 μA (MAX) at 5V
- Small package saves board space
- Lightning Protection, IEC 61000-4-5, 2nd edition 2A (8/20 μs)
- RoHS compliant and lead free
