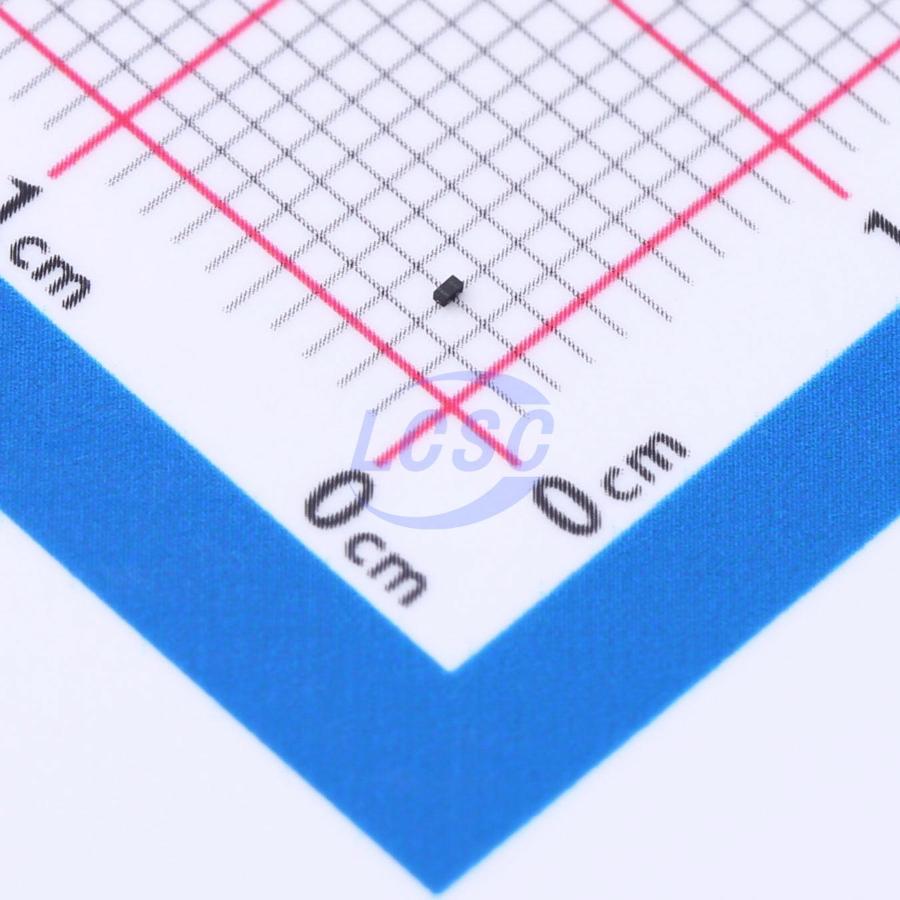

SP1026-01UTG
13.4VC Clamp 2A@8/20us Ipp TVS DIODE UDFN
TVS DIODE 6VWM 13.4VC UDFN
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP1026-01UTG
- Store part #
- C316002
- Package / case
- UDFN
- Category
- TVS Diodes
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
610 in stock
#C316002
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.87 | ₹74.35 |
| 50+ | ₹11.89 | ₹594.50 |
| 150+ | ₹10.41 | ₹1,561.50 |
| 500+ | ₹9.29 | ₹4,645.00 |
| 2,500+ | ₹8.40 | ₹21,000.00 |
| 5,000+ | ₹7.95 | ₹39,750.00 |
5 × ₹14.87
₹74.35
excl. GST
₹87.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
SP1026-01UTG
₹74.35 for 5 + GST
Specifications
- Clamping Voltage
- 13.4V
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Voltage - Breakdown
- 7.8V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
The SP1026 back-to-back diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1026 TVS can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 5A of 8/20μs surge current (IEC 61000-4-5) with very low clamping voltages.
Applications
- Mobile phones
- Smart phones
- Smart watches
- Tablets
- Portable navigation devices
- Portable medical devices
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5 2nd edition, 5A (8/20μs)
- Low leakage current of 0.5μA (MAX) at 5V
- Space efficient 0201 footprint
- Halogen free, Lead free and RoHS compliant
- μDFN-2 footprint component
