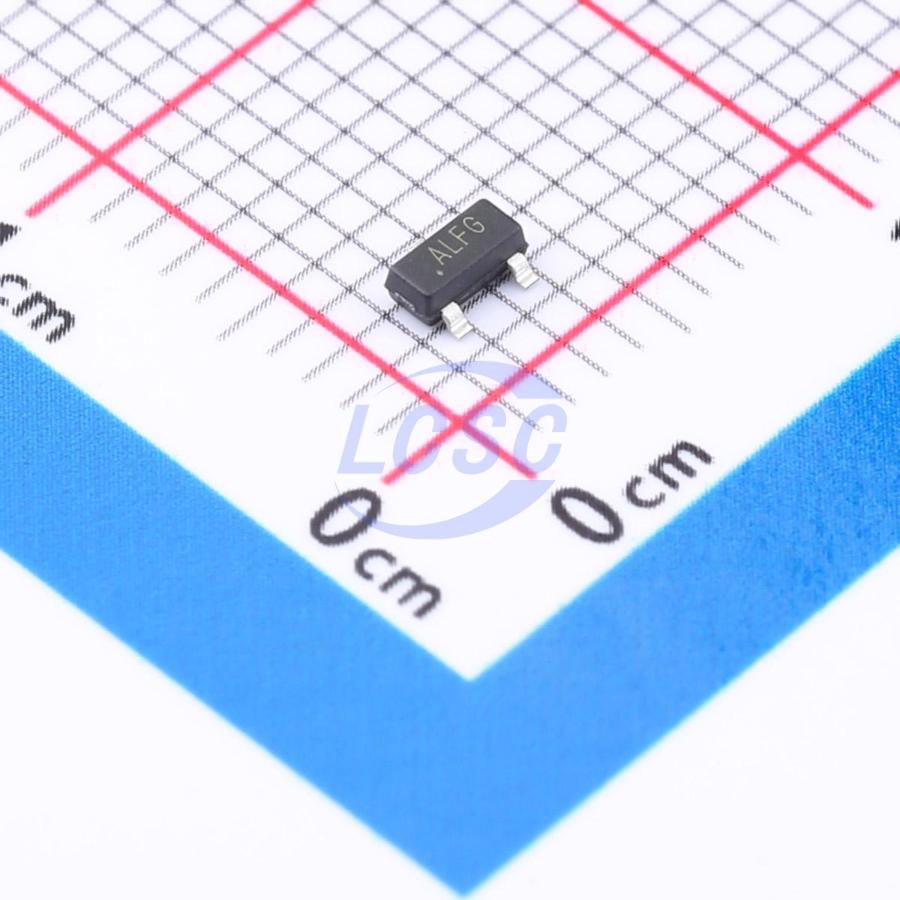

SP1305-02HTG
8.6VC 11VC Clamp 5A@8/20us Ipp TVS DIODE SOT-23-3
TVS DIODE 5VWM 8.6VC 11VC SOT-23-3
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP1305-02HTG
- Store part #
- C1974930
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
505 in stock
#C1974930
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.80 | ₹239.00 |
| 50+ | ₹37.65 | ₹1,882.50 |
| 150+ | ₹33.31 | ₹4,996.50 |
| 500+ | ₹27.88 | ₹13,940.00 |
| 3,000+ | ₹25.47 | ₹76,410.00 |
| 6,000+ | ₹24.01 | ₹1,44,060.00 |
5 × ₹47.80
₹239.00
excl. GST
₹282.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP1305-02HTG
₹239.00 for 5 + GST
Specifications
- Clamping Voltage
- 13.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.015 g
Overview
The SP1305 TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SP1305 can absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 5A of 8/20μs induced surge current (IEC 61000-4-5, 2nd Edition) with very low clamping voltages.
Applications
- Industrial equipment
- Test and medical equipment
- Point-of-Sale terminals
- Motor controls
- Legacy ports (RS-232, RS-485)
- Security and alarm system
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 50A (5/50ns)
- Lightning, IEC 61000-4-5 2nd Edition, 5A (8/20μs)
- Low clamping voltage
- Low leakage current
- Moisture Sensitivity Level (MSL-1)
- Halogen-Free, Lead-Free and RoHS-Compliant
