TECH PUBLICDatasheet (PDF)

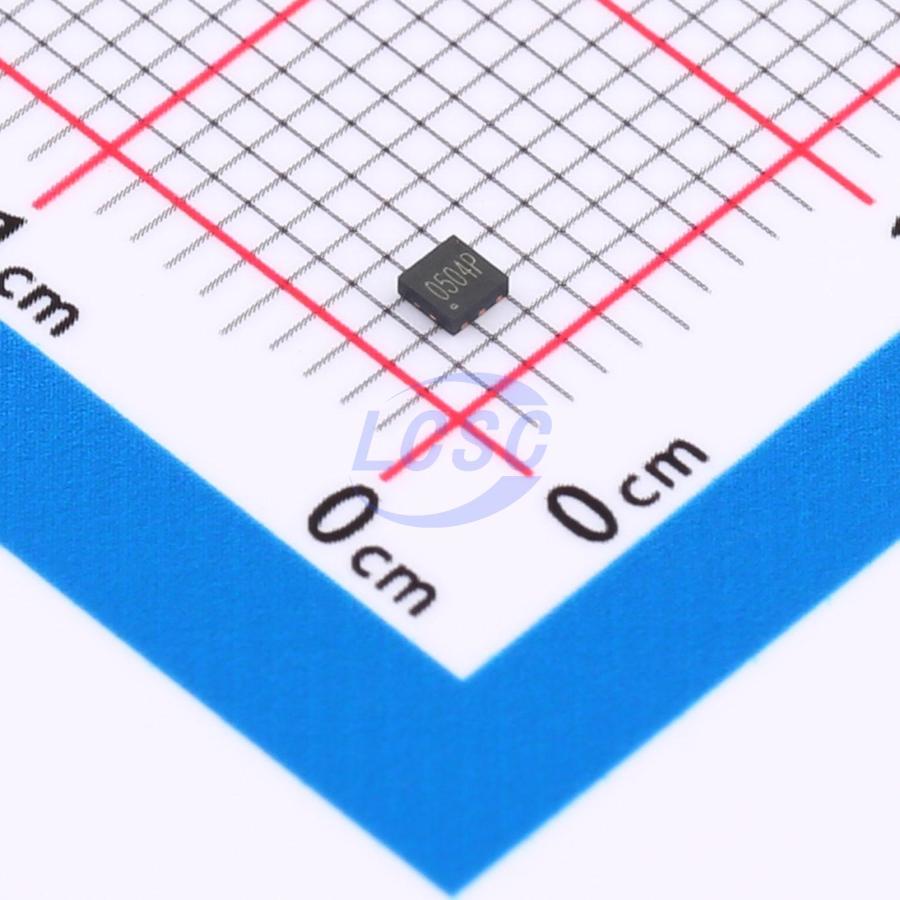

SP3002-04UTG
21VC Clamp 4.5A@8/20us Ipp DFN-6(1.6x1.6)
DFN-6(1.6x1.6)RoHSActive
5VWM 21VC DFN-6(1.6x1.6)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP3002-04UTG
- Store part #
- C23380892
- Package / case
- DFN-6(1.6x1.6)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
800 in stock
#C23380892
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.49 | ₹62.45 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.43 | ₹1,264.50 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 3,000+ | ₹6.60 | ₹19,800.00 |
| 6,000+ | ₹6.20 | ₹37,200.00 |
5 × ₹12.49
₹62.45
excl. GST
₹73.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP3002-04UTG
₹62.45 for 5 + GST
Specifications
- Clamping Voltage
- 21V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- USB 2.O and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- Key Pads
Key features
- Ultra low capacitance: 0.35pF(IO to I0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects one power line and four data lines
- Flow-through package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 4.5A (8/20μs)
- RoHS Compliant Package: DFN1616-6
- Lead Finish: Matte Tin
- Case Material: “Green" Molding Compound. UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 3 per J-STD-020
- Shipping Qty :3000pcs/7Inch Tape & Reel
