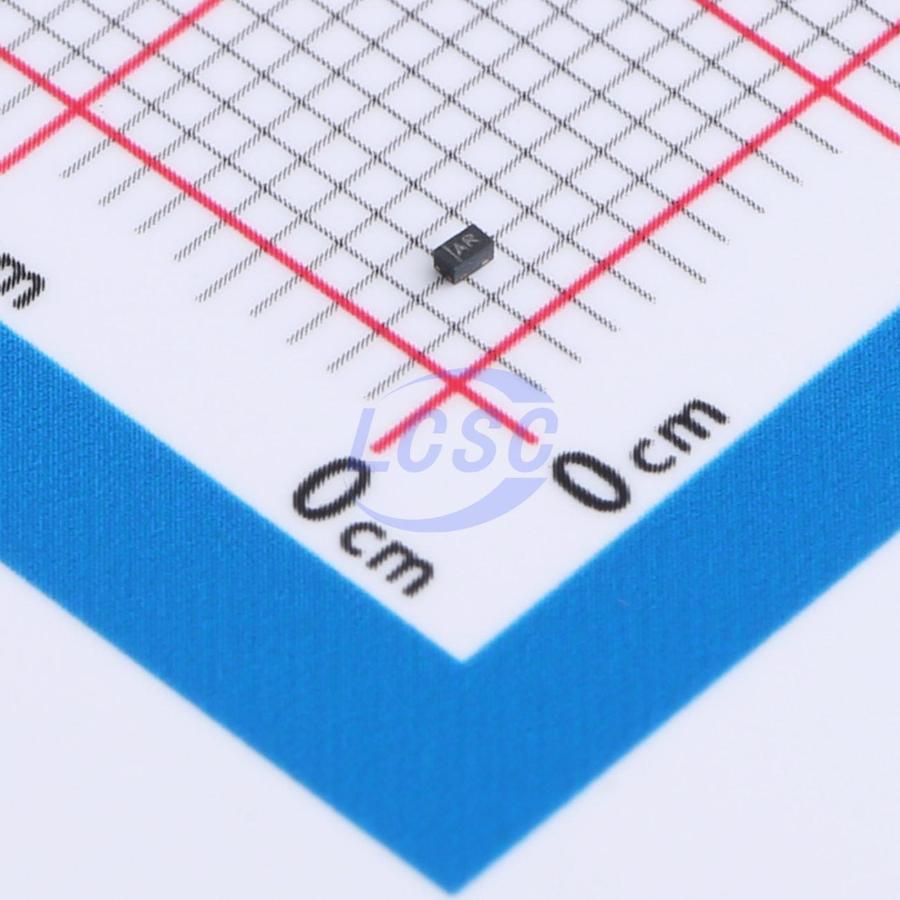

SP3222-02ETG
10VC Clamp 3A Ipp TVS DIODE SOD-883
TVS DIODE 3.3VWM 10VC SOD-883
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP3222-02ETG
- Store part #
- C1979164
- Package / case
- SOD-883
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
705 in stock
#C1979164
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.30 | ₹176.50 |
| 50+ | ₹28.07 | ₹1,403.50 |
| 150+ | ₹24.97 | ₹3,745.50 |
| 500+ | ₹21.12 | ₹10,560.00 |
| 2,500+ | ₹19.40 | ₹48,500.00 |
| 5,000+ | ₹18.35 | ₹91,750.00 |
5 × ₹35.30
₹176.50
excl. GST
₹208.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
SP3222-02ETG
₹176.50 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Peak Pulse Current (Ipp)
- 3A
- Peak Pulse Power Dissipation (Ppp)
- 30W
- Voltage - Breakdown
- 6.1V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.098 g
Overview
The SP3222 integrates 2-channel low-capacitance diodes to protect electronic equipment against destructive ESD. These robust diodes can safely absorb repetitive ESD strikes exceeding the maximum level specified in IEC 61000-4-2 (±30 kV contact discharge) without performance degradation. The low load capacitance makes them ideal for protecting high-speed data lines such as DVI, USB2.0, USB3.0, and eSATA.
Applications
- USB 3.0/USB 2.0/MHL
- MIPI camera and display
- DisplayPort 1.3, eSATA
- Set-top boxes, game consoles
- Smartphones
- External storage devices
- Ultrabooks, laptops
- Tablets, e-readers
- High-speed serial interfaces
Key features
- ±30 kV contact discharge, ±30 kV air discharge ESD protection (IEC 61000-4-2)
- EFT immunity, IEC 61000-4-4, 40A (5/50ns)
- Lightning surge protection, IEC 61000-4-5 Edition 2, 3A (to = 8/20 μs)
- 0.9 pF low capacitance (@ VR = 0V, maximum)
- Space-saving 0402 (SOD883) package
- Ultra-low dynamic resistance (typical 0.17 Ω)
- Moisture Sensitivity Level (MSL-1)
- Halogen-free, lead-free, RoHS compliant
- AEC-Q101 qualified
