TECH PUBLIC

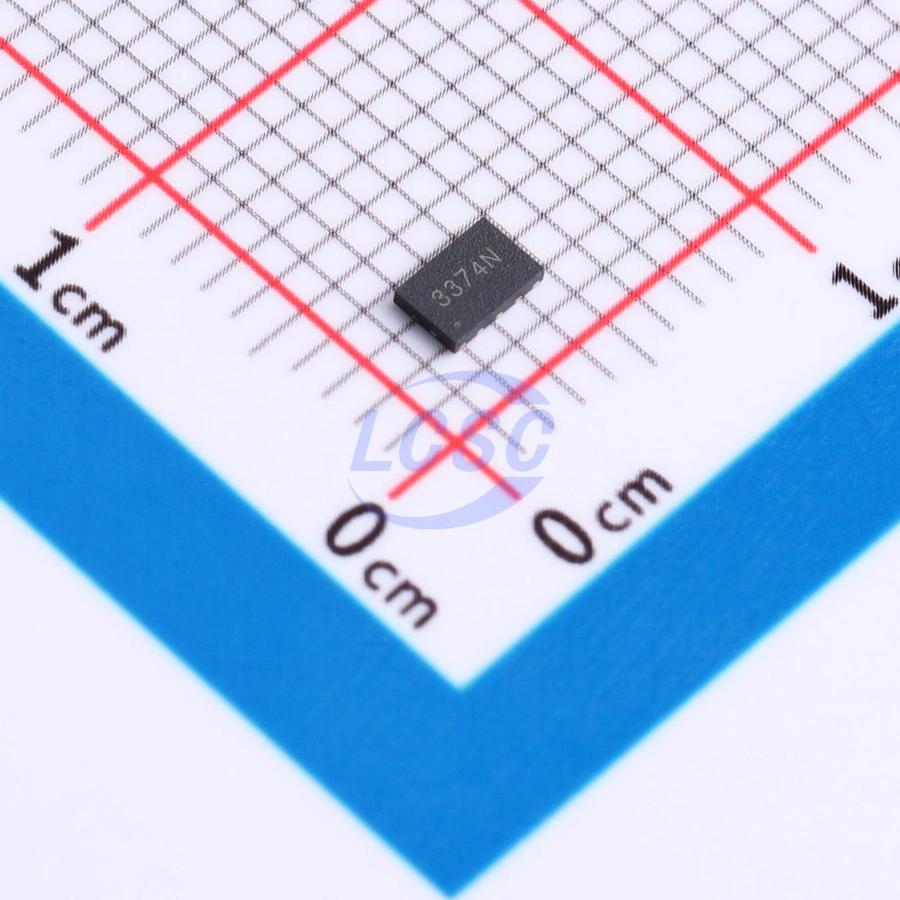

SP3374NUTG

18V 25A@8/20us 400W@8/20us 3.5V Unidirectional 3.3V DFN3020-10 TVS Diodes

DFN3020-10RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SP3374NUTG
Store part #: C52817172
Package / case: DFN3020-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,526 in stock

#C52817172

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
1+	₹75.99	₹75.99
10+	₹61.00	₹610.00
30+	₹53.41	₹1,602.30
100+	₹46.03	₹4,603.00
500+	₹41.38	₹20,690.00
1,000+	₹39.27	₹39,270.00

Quantity (min 1)

1 × ₹75.99

₹75.99

excl. GST

₹89.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SP3374NUTG

₹75.99 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 25A@8/20us
Peak Pulse Power Dissipation (Ppp): 400W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 3.5V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.048 g

Overview

Applications

Digital Video Interface (DVI)
Projection TV monitors and flat panel displays
Notebook computers
Set-top boxes
Projection TVs

Key features

Low operating voltage: 3.3V
Ultra-low capacitance: 5pF (maximum)
Ultra-low leakage current: nanoampere level
Low clamping voltage
Compliant with the following standards:
IEC 61000-4-2 (ESD) immunity test
Air discharge: ±30kV
Contact discharge: ±30kV
IEC61000-4- (Lightning) 25A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS compliant
Lead finish: NiPdAu

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	TPRCLAMP3374N#C2901308TECH PUBLIC · DFN3020-10	TECH PUBLIC	DFN3020-10	1,815	₹81.50 · 1,815 in stock	View
