TECH PUBLICDatasheet (PDF)

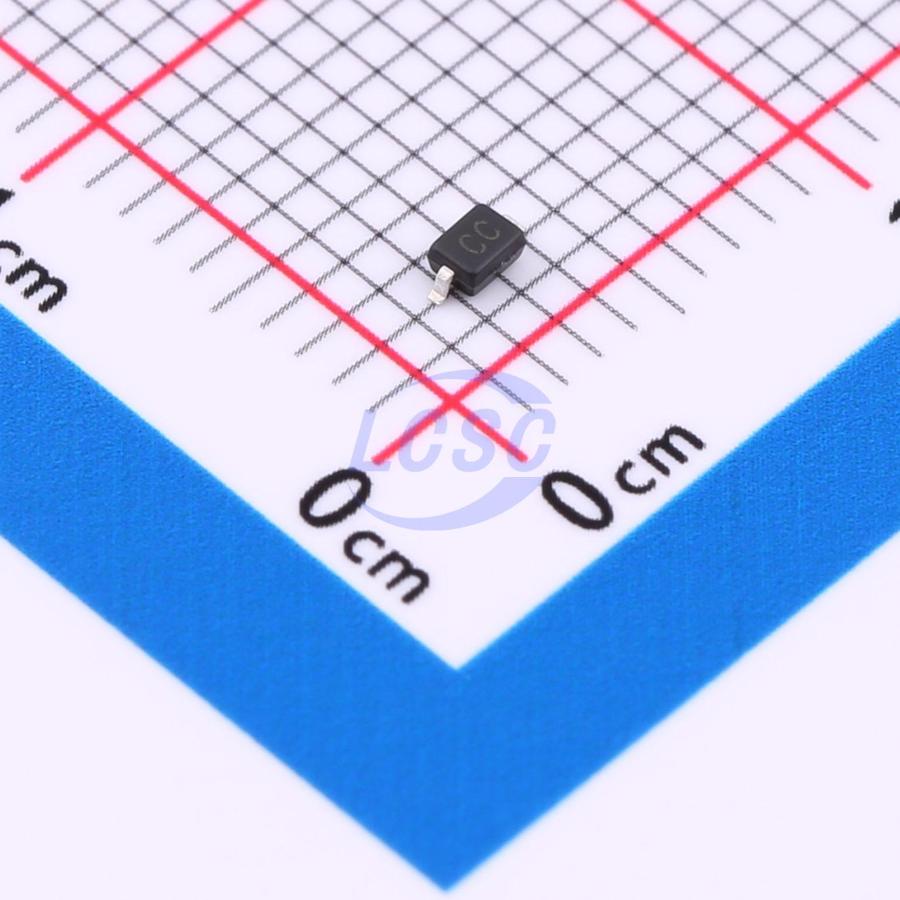

SP4020-01FTG-C-TP
21VC Clamp ESD DIODE SOD-323
SOD-323RoHSActive
ESD DIODE 3.3VWM 21VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP4020-01FTG-C-TP
- Store part #
- C2835470
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,815 in stock
#C2835470
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.76 | ₹73.80 |
| 50+ | ₹11.60 | ₹580.00 |
| 150+ | ₹10.02 | ₹1,503.00 |
| 500+ | ₹8.82 | ₹4,410.00 |
| 3,000+ | ₹7.89 | ₹23,670.00 |
| 6,000+ | ₹7.41 | ₹44,460.00 |
5 × ₹14.76
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP4020-01FTG-C-TP
₹73.80 for 5 + GST
Specifications
- Clamping Voltage
- 21V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 22A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 3.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- USB Ports
- Smart Phones
- Wireless Systems Ethernet 10/100/1000 Base T
Key features
- Low operating :3.3V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
