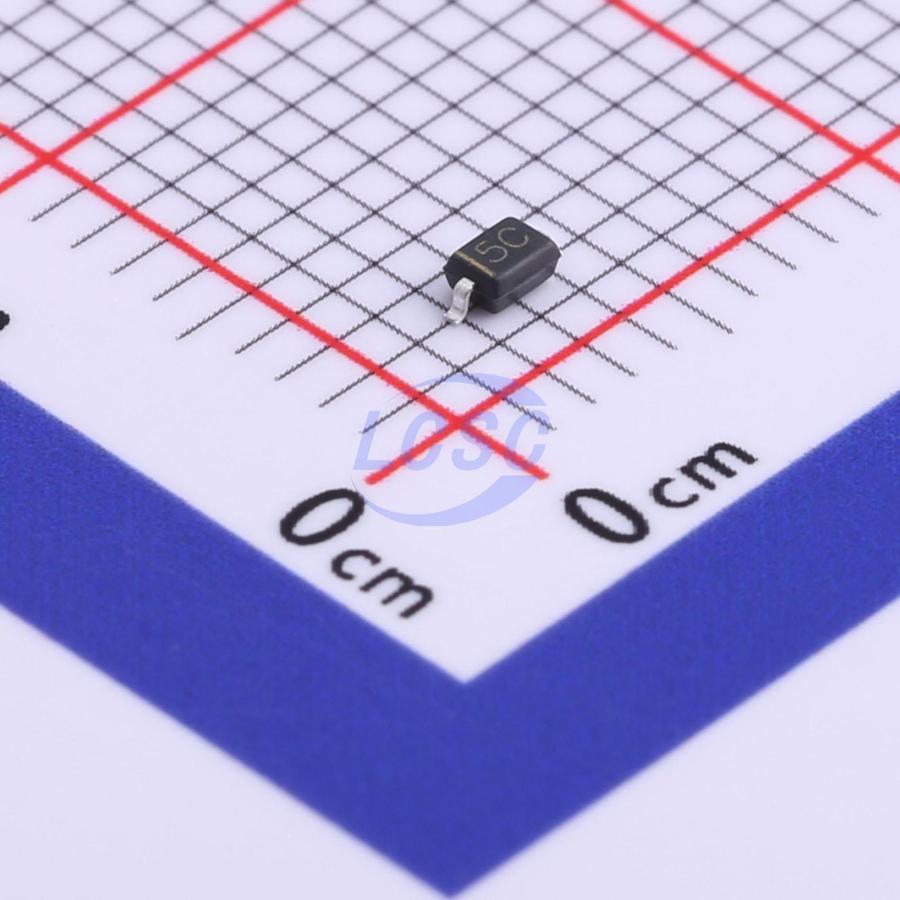

SP4021-01FTG-C
19.6VC Clamp 24A@8/20us Ipp ESD DIODE SOD-323
ESD DIODE 5VWM 19.6VC SOD-323
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP4021-01FTG-C
- Store part #
- C720051
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
721 in stock
#C720051
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.87 | ₹106.87 |
| 10+ | ₹85.81 | ₹858.10 |
| 30+ | ₹75.16 | ₹2,254.80 |
| 100+ | ₹64.73 | ₹6,473.00 |
| 500+ | ₹58.44 | ₹29,220.00 |
| 1,000+ | ₹55.18 | ₹55,180.00 |
1 × ₹106.87
₹106.87
excl. GST
₹126.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP4021-01FTG-C
₹106.87 for 1 + GST
Specifications
- Clamping Voltage
- 19.6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 24A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 750W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.3V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The SP4021 components integrate low capacitance steering diodes with one or two avalanche breakdown diodes for unidirectional or bidirectional protection, respectively, to protect against ESD and lightning induced surge events. These components can safely absorb up to 25A per IEC 61000-4-5 (tp=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000- 4-2 International Standard. The low loading capacitance and high surge capability make it ideal for protecting telecommunication ports such as Ethernet and other high speed data interfaces.
Applications
- 10/100/1000 Ethernet
- Computers and Peripherals
- T1/E1/T3/E3
- Instrumentation
- USB 1.1/2.0
- Medical Equipment
- Power Ports
- USB 3.0 and 3.1
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, 25A (8/20 as defined in IEC 61000-4-5 2nd edition)
- Low capacitance of 2.5pF (QorR = 0V)
- Low leakage current
- Unidirectional and bidirectional configuration
- Small SOD323 package fits 0805 footprints
- Moisture Sensitivity Level (MSL-1)
- AEC-Q101 Qualified
- Halogen free, Lead free, and RoHS compliant
