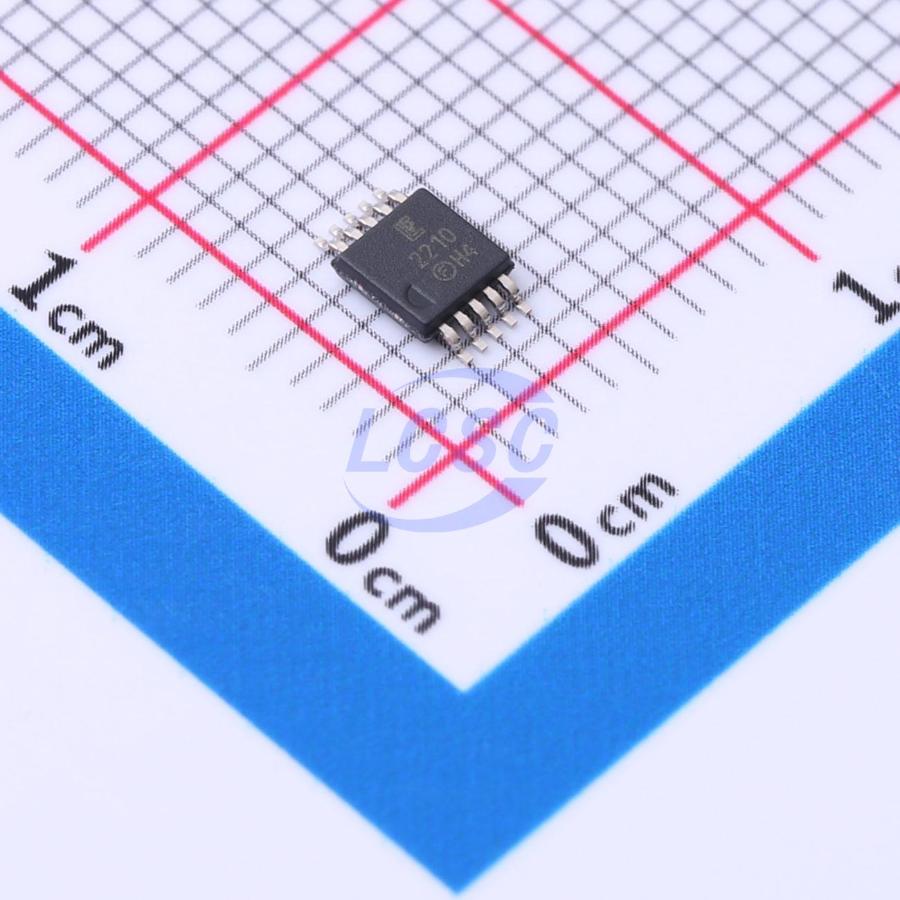

SP4044-04ATG
6VC Clamp 2A@8/20us Ipp TVS DIODE MSOP-10
TVS DIODE 2.8VWM 6VC MSOP-10
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP4044-04ATG
- Store part #
- C1975848
- Package / case
- MSOP-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C1975848
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.21 | ₹50.21 |
| 10+ | ₹48.90 | ₹489.00 |
| 30+ | ₹48.02 | ₹1,440.60 |
| 100+ | ₹47.38 | ₹4,738.00 |
1 × ₹50.21
₹50.21
excl. GST
₹59.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SP4044-04ATG
₹50.21 for 1 + GST
Specifications
- Clamping Voltage
- 6V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 2.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
The SP4044 integrates low capacitance diodes with an additional zener diode to protect each 1/O pin against ESD and high surge events. This robust device can safely absorb up to 24A per IEC 61000-4-5 2nd edition (tp=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 International Standard. Their low loading capacitance also makes them ideal for protecting high speed signal pins.
Applications
- T3/E3 Secondary Protection
- A/V Equipment
- HDBaseT Protector
- 10/100/1000 Ethernet
- 2.5 and 5 Gigabit Ethernet
- T1/E1 Secondary Protection
Key features
- Signal-integrity-preservingl straight through routing
- Low leakage current of 1μA (MAX) at 2.8V
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5 2nd edition, 24A (8/20μs)
- Low capacitance of 1.5pF (TYP) per I/O
- AEC-Q101 qualified
- Halogen free, Lead free and RoHS compliant
- Moisture Sensitivity Level (MSL Level-1)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCLAMP0514M#C5311019TECH PUBLIC · MSOP-10 | TECH PUBLIC | MSOP-10 | 2,710 | ₹42.40 · 2,710 in stock | View |
