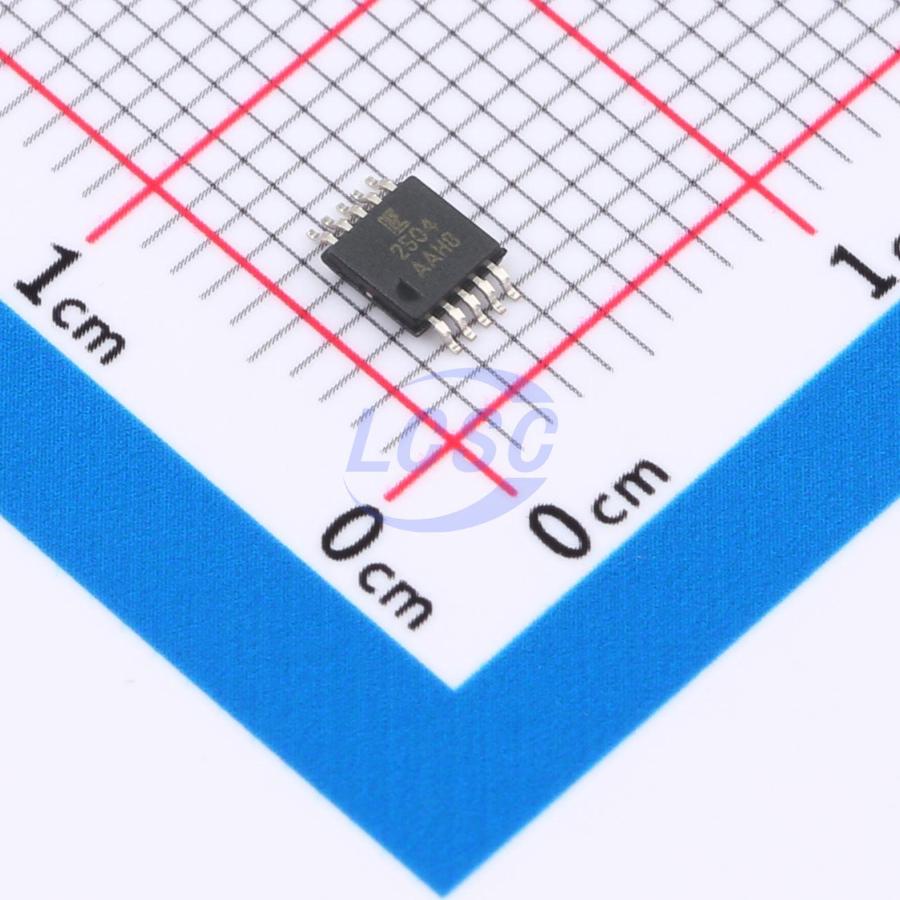

SP4065-08ATG
13.5VC Clamp 20A@8/20us Ipp ESD DIODE MSOP-10
- Manufacturer
- Littelfuse
- Manufacturer part #
- SP4065-08ATG
- Store part #
- C1975717
- Package / case
- MSOP-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C1975717
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.14 | ₹195.14 |
| 10+ | ₹161.46 | ₹1,614.60 |
| 30+ | ₹142.99 | ₹4,289.70 |
| 100+ | ₹122.13 | ₹12,213.00 |
| 500+ | ₹113.00 | ₹56,500.00 |
| 1,000+ | ₹108.66 | ₹1,08,660.00 |
1 × ₹195.14
₹195.14
excl. GST
₹230.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SP4065-08ATG
₹195.14 for 1 + GST
Specifications
- Clamping Voltage
- 13.5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.144 g
Overview
The SP4065 integrates low capacitance diodes with an additional zener diode to protect each I/O pin against ESD and high surge events. This robust device can safely absorb up to 20A per IEC 61000-4-5, 2nd Edition (tp=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 International Standard. Their low loading capacitance also makes them ideal for protecting highspeed signal pins.
Applications
- LCD/LED TVs
- Notebooks
- Desktops
- 1Gb Ethernet
- Game Consoles
- Network Hardware
- Set Top Boxes
- Small Cells
Key features
- ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5, 2nd Edition 20A (8/20μs)
- Low capacitance of 4.4pF (TYP) per I/O
- Low leakage current of 1μA (MAX) at 3.3V
- Halogen free, Lead-free and RoHS compliant
- Moisture Sensitivity Level (MSL - Level 1)
