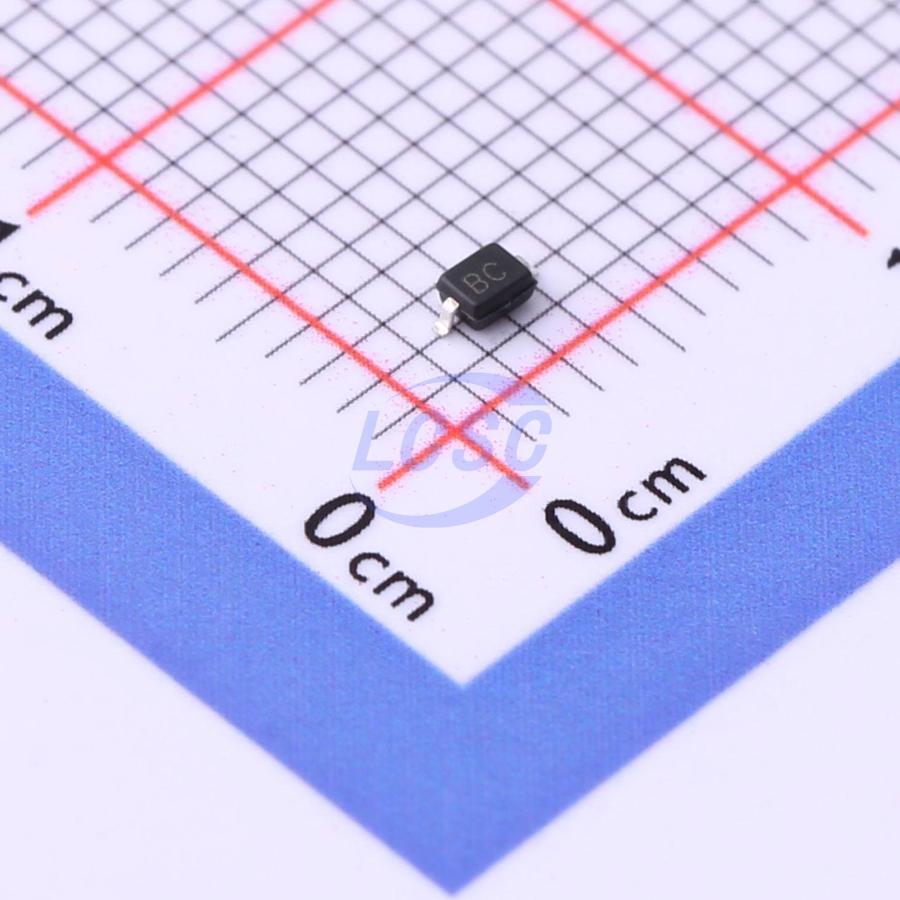

SP4208-01FTG-C TECH PUBLIC

SP4208-01FTG-C

20VC Clamp 18A@8/20us Ipp SOD-323

SOD-323RoHSActive

8VWM 20VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: SP4208-01FTG-C
Store part #: C3040627
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,340 in stock

#C3040627

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
10+	₹10.35	₹103.50
100+	₹8.27	₹827.00
300+	₹7.24	₹2,172.00
3,000+	₹5.77	₹17,310.00
6,000+	₹5.15	₹30,900.00
9,000+	₹4.83	₹43,470.00

Quantity (min 10, multiples of 10)

10 × ₹10.35

₹103.50

excl. GST

₹122.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SP4208-01FTG-C

₹103.50 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 18A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Voltage - Breakdown: 8.7V
Number of Channels: 1
type: ESD
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.027 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals

Key features

350W peak pulse power (8/20μs)
Low operating: 8V
Ultra low capacitance: 1.0 pF typical
Ultra low leakage: nA level
Low clamping voltage
Protects one power line or data line
Complies with following standards:
IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
RoHS Compliant
