VBsemi ElecDatasheet (PDF)

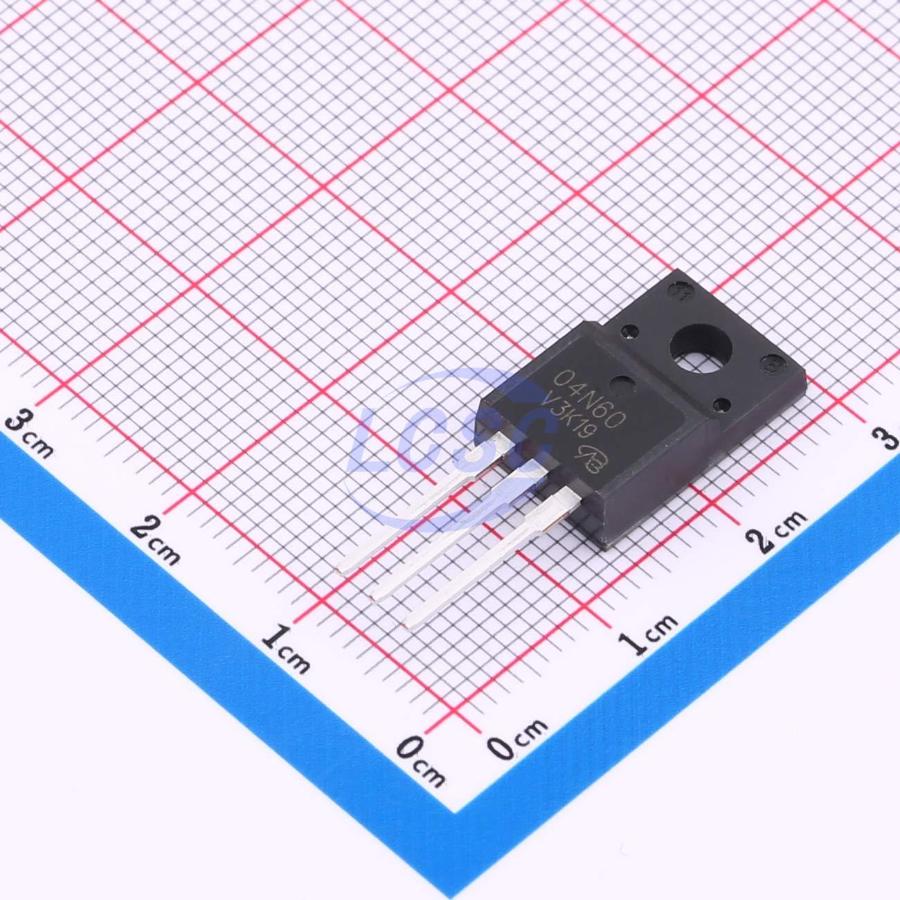

SPA04N60C2-VB
N-Channel 650V 4.5A 60W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 4.5A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SPA04N60C2-VB
- Store part #
- C19632160
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C19632160
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.90 | ₹72.90 |
| 10+ | ₹58.82 | ₹588.20 |
| 50+ | ₹51.68 | ₹2,584.00 |
| 100+ | ₹44.74 | ₹4,474.00 |
| 500+ | ₹40.55 | ₹20,275.00 |
| 1,000+ | ₹38.23 | ₹38,230.00 |
1 × ₹72.90
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SPA04N60C2-VB
₹72.90 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 1.912nF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 1.017nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 1.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.72 g
Overview
Key features
- Low Gate Charge Q₉ Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
