InfineonDatasheet (PDF)

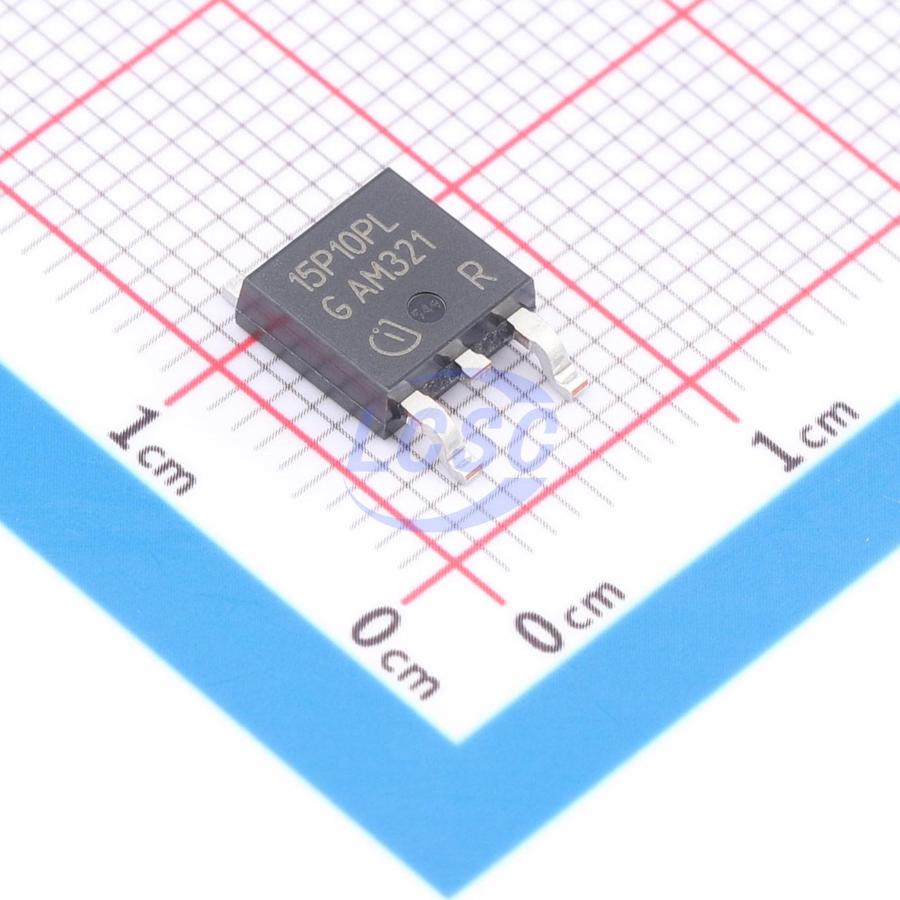

SPD15P10PLGBTMA1
P-Channel 100V 15A 128W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET P-CH 100V 15A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- SPD15P10PLGBTMA1
- Store part #
- C3289113
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C3289113
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.20 | ₹135.20 |
| 10+ | ₹131.70 | ₹1,317.00 |
| 30+ | ₹129.53 | ₹3,885.90 |
| 100+ | ₹127.35 | ₹12,735.00 |
1 × ₹135.20
₹135.20
excl. GST
₹159.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPD15P10PLGBTMA1
₹135.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 272pF
- Ciss-Input Capacitance
- 1.49nF
- Pd - Power Dissipation
- 128W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 270mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 62nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.464 g
Overview
650V CoolMOS CFD7A integrates a fast body diode, suitable for power factor correction (PFC) and resonant switching topologies such as zero voltage switching (ZVS) phase-shifted full bridge and LLC topologies.
Applications
- Unidirectional and bidirectional DC-DC converters
- On-board battery chargers
Key features
- P-Channel
- Enhancement mode
- logic level
- Avalanche rated
- Pb-free lead plating; RoHS compliant
- Qualified according to AEC Q101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPD15P10PGBTMA1#C3279018Infineon · TO-252 | Infineon | TO-252 | 1 | ₹302.77 · 1 in stock | View |
 | IRFR5410#C5342377TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 4,915 | ₹58.23 · 4,915 in stock | View |
 | HSU0137#C54842111HUASHUO · TO252 | HUASHUO | TO252 | 100 | ₹35.71 · 100 in stock | View |
 | UTT18P10L-TN3-R#C84900UTC · TO-252 | UTC | TO-252 | 985 | ₹35.51 · 985 in stock | View |
| HYG400P10LR1D#C2827248HUAYI · TO-252-2 | HUAYI | TO-252-2 | 2,350 | ₹54.04 · 2,350 in stock | View | |
