TDKDatasheet (PDF)

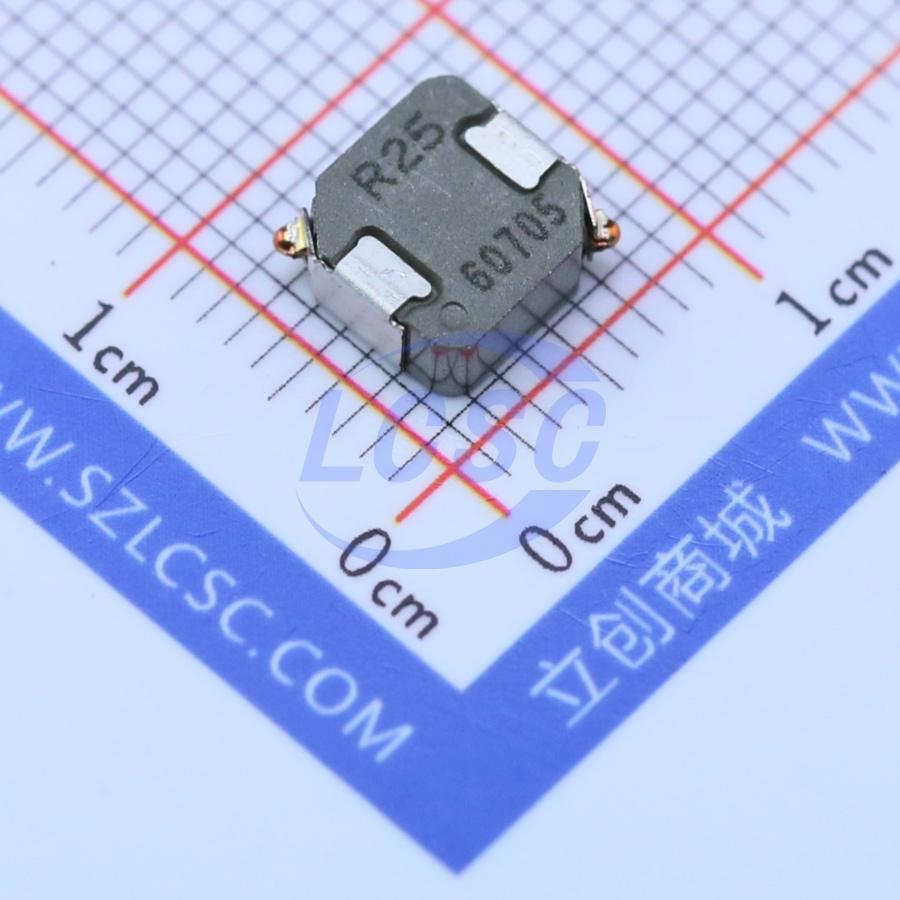

SPM6530T-R25M230
23A 250nH ±20% 28.5A 2.31mΩ SMD,7.1x6.5mm Fixed Inductors RoHS
SMD,7.1x6.5mmROHS3 CompliantActive
FIXED IND 250nH 23A 2.31mΩ SMD,7.1x6.5mm
- Manufacturer
- TDK
- Manufacturer part #
- SPM6530T-R25M230
- Store part #
- C87574
- Package / case
- SMD,7.1x6.5mm
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
875 in stock
#C87574
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.89 | ₹129.45 |
| 50+ | ₹21.23 | ₹1,061.50 |
| 150+ | ₹19.25 | ₹2,887.50 |
| 1,000+ | ₹16.76 | ₹16,760.00 |
| 2,000+ | ₹15.65 | ₹31,300.00 |
| 5,000+ | ₹14.99 | ₹74,950.00 |
5 × ₹25.89
₹129.45
excl. GST
₹152.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SPM6530T-R25M230
₹129.45 for 5 + GST
Specifications
- Current Rating
- 23A
- Inductance
- 250nH
- Tolerance
- ±20%
- Current - Saturation(Isat)
- 28.5A
- DC Resistance(DCR)
- 2.31mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.011 g
Overview
Applications
- Laptops, hard disk drives, servers, voltage regulator modules, compact power modules, etc.
Key features
- Magnetically shielded wirewound inductor using metal magnetic material, designed for power supply circuits.
- Achieves higher current ratings, lower DCR, and smaller footprint compared to ferrite wirewound inductors.
- Minimal inductance variation at elevated temperatures with excellent DC superimposition characteristics.
- Metal magnetic material with integrated molded coil construction provides lower audible noise compared to core-bonded coil designs.
- Operating temperature range: -40 to +125°C (including self-heating)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FC-HCM1190-R25-L#C28314481FANGCHENG · SMD,11.3x11mm | FANGCHENG | SMD,11.3x11mm | 156 | ₹79.96 · 156 in stock | View |
 | XR111109XC-R25M#C53307982XR · Through Hole,11.5x11.5mm | XR | Through Hole,11.5x11.5mm | 55 | ₹71.43 · 55 in stock | View |
 | GDSIHC131309-R25L-R17#C49208935GUDIAN · SMD,13.5x13mm | GUDIAN | SMD,13.5x13mm | 600 | ₹98.54 · 600 in stock | View |
| CTSFW1335F-R25M#C7117893Central · - | Central | - | On request | Price on request | Quote | |
| HCB1190-251#C17406108DELTA · SMD,11.2x11.2mm | DELTA | SMD,11.2x11.2mm | On request | ₹461.48 · 0 in stock | View | |
