HXY MOSFETDatasheet (PDF)

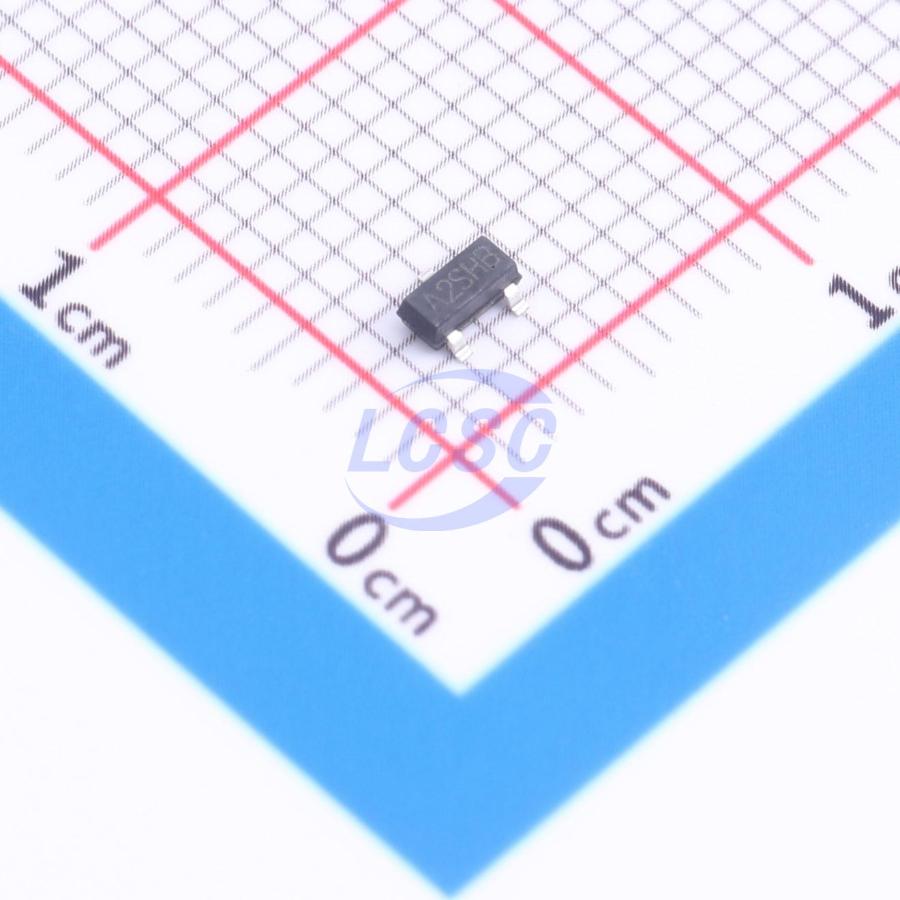

SQ2310ES-T1_BE3-HXY
20V 3A 900mW 23mΩ@4.5V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SQ2310ES-T1_BE3-HXY
- Store part #
- C54582409
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
79 in stock
#C54582409
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.44 | ₹98.44 |
| 10+ | ₹80.82 | ₹808.20 |
| 30+ | ₹72.01 | ₹2,160.30 |
| 100+ | ₹63.20 | ₹6,320.00 |
| 500+ | ₹51.81 | ₹25,905.00 |
| 1,000+ | ₹49.02 | ₹49,020.00 |
1 × ₹98.44
₹98.44
excl. GST
₹116.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2310ES-T1_BE3-HXY
₹98.44 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3A
- Output Capacitance(Coss)
- 48pF
- Pd - Power Dissipation
- 900mW
- RDS(on)
- 23mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.9nC@4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The SQ2310ES-T1BE3 employs advanced trench technology to deliver excellent on-resistance and low gate charge, with operation down to 2.5V gate voltage. The device is suitable for battery protection and other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage VDS = 20V, drain current ID = 3.0A
- Drain-source on-resistance RDS(ON) < 35Ω at gate-source voltage VGS = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Si2312BDS-T1-E3-HXY#C22366687HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,800 | ₹8.67 · 3,800 in stock | View |
 | Si2312BDS-T1-GE3-HXY#C22366688HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 30 | ₹5.53 · 30 in stock | View |
 | Si2374DS-T1-GE3-HXY#C22366689HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 55 | ₹12.48 · 55 in stock | View |
 | HXY2302AI#C3033385HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 2,700 | ₹2.86 · 2,700 in stock | View |
 | SI2374DS-T1-BE3-HXY#C54582406HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 85 | ₹20.68 · 85 in stock | View |
