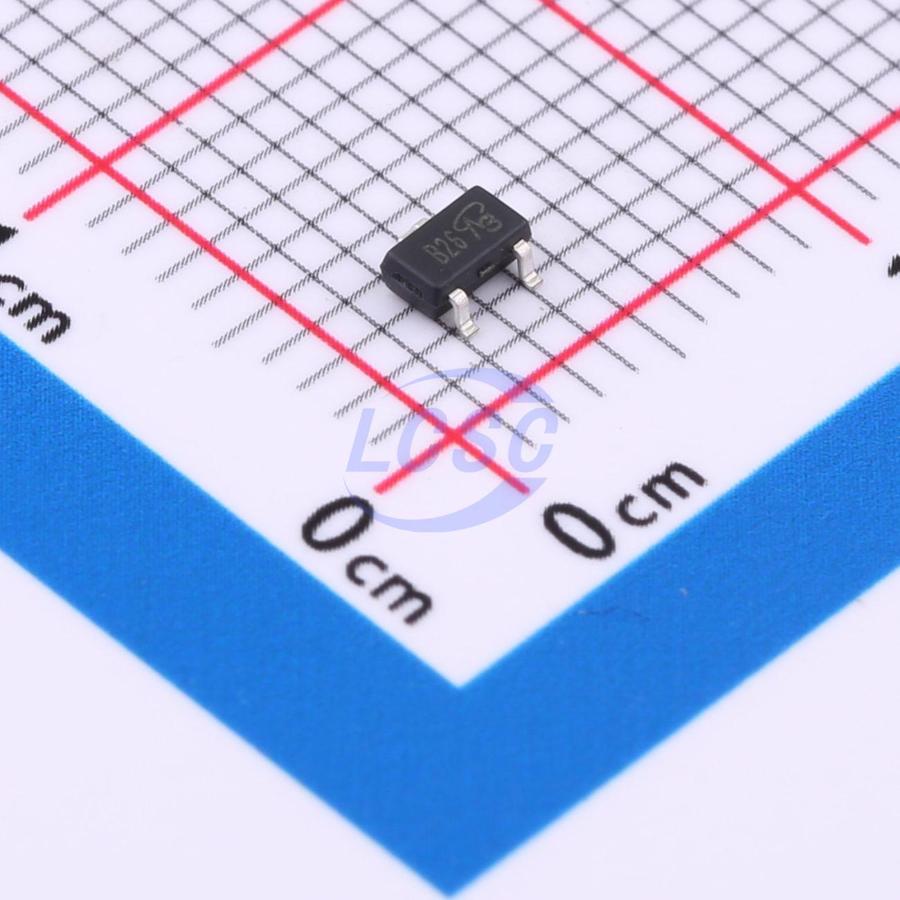

SQ2361EES-T1-GE3-VB
P-Channel 60V 5.2A 27W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)ROHS CompliantActive
MOSFET P-CH 60V 5.2A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SQ2361EES-T1-GE3-VB
- Store part #
- C7524977
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C7524977
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.39 | ₹221.95 |
| 50+ | ₹34.86 | ₹1,743.00 |
| 150+ | ₹30.77 | ₹4,615.50 |
| 500+ | ₹25.68 | ₹12,840.00 |
| 3,000+ | ₹23.40 | ₹70,200.00 |
| 6,000+ | ₹22.04 | ₹1,32,240.00 |
5 × ₹44.39
₹221.95
excl. GST
₹261.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2361EES-T1-GE3-VB
₹221.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 170pF
- Current - Continuous Drain(Id)
- 5.2A
- Ciss-Input Capacitance
- 270pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
Applications
- Laptop
- Load Switch
Key features
- Isolated Package
- High Voltage Isolation = 2.5 kV RMS (t = 60 s, f = 60 Hz)
- Sink to Lead Creepage Distance = 4.8 mm
- P-Channel
- 175 °C Operating Temperature
- Dynamic dV/dt Rating
- Low Thermal Resistance
- Lead (Pb)-free Available
