VISHAYDatasheet (PDF)

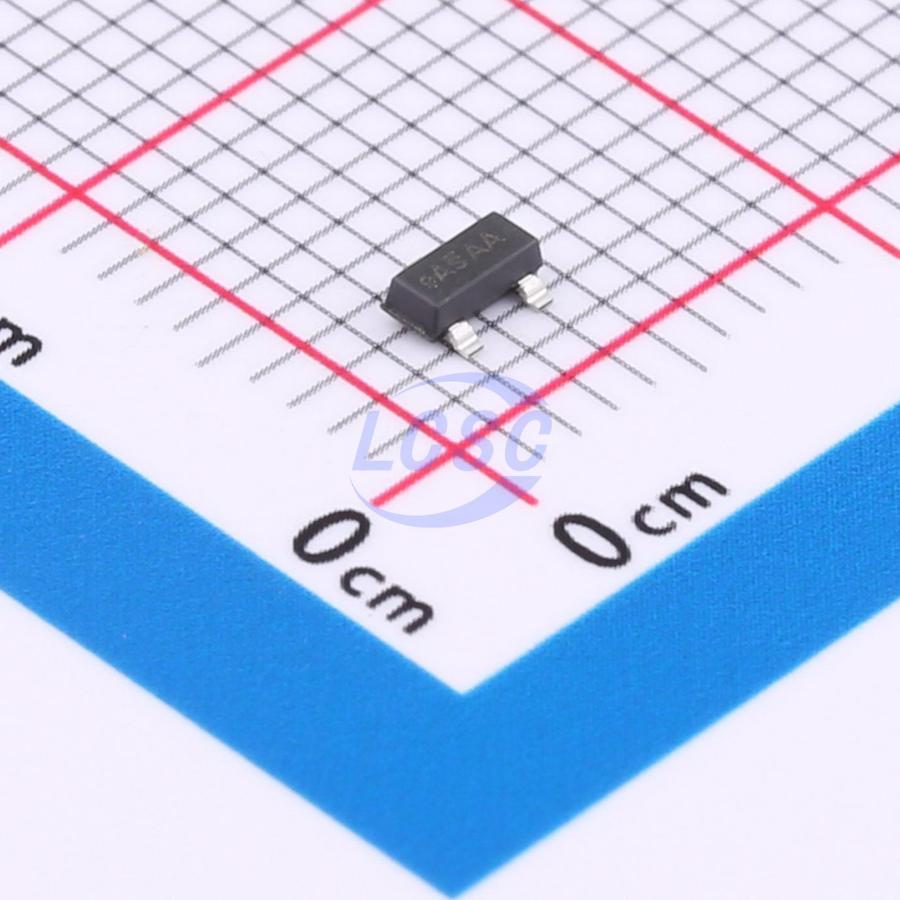

SQ2389ES-T1_BE3
P-Channel 40V 4.1A 3W Surface Mount SOT-23-3(TO-236-3)
SOT-23-3(TO-236-3)ROHS3 CompliantActive
MOSFET P-CH 40V 4.1A SOT-23-3(TO-236-3)
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2389ES-T1_BE3
- Store part #
- C3290060
- Package / case
- SOT-23-3(TO-236-3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
505 in stock
#C3290060
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.32 | ₹236.60 |
| 50+ | ₹37.06 | ₹1,853.00 |
| 150+ | ₹32.65 | ₹4,897.50 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 3,000+ | ₹24.71 | ₹74,130.00 |
| 6,000+ | ₹23.25 | ₹1,39,500.00 |
5 × ₹47.32
₹236.60
excl. GST
₹279.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2389ES-T1_BE3
₹236.60 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 4.1A
- Ciss-Input Capacitance
- 420pF
- Pd - Power Dissipation
- 3W
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 188mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
Applications
- Load Switches - Power Management
Key features
- TrenchFET power MOSFET
- AEC - Q101 qualified
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ2389ES-T1_GE3#C142527VISHAY · SOT-23 | VISHAY | SOT-23 | 1,220 | ₹45.07 · 1,220 in stock | View |
 | SQ2319CES-T1_GE3#C30884362VISHAY · SOT-23-3 | VISHAY | SOT-23-3 | 8,265 | ₹41.44 · 8,265 in stock | View |
 | SQ2389CES-T1_GE3#C26443717VISHAY · SOT-23 | VISHAY | SOT-23 | 2,331 | ₹54.73 · 2,331 in stock | View |
 | NCE60P04Y-JSM#C18221465JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 38,150 | ₹27.47 · 38,150 in stock | View |
 | WST4041#C148357Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 54,375 | ₹23.06 · 54,375 in stock | View |
