VISHAYDatasheet (PDF)

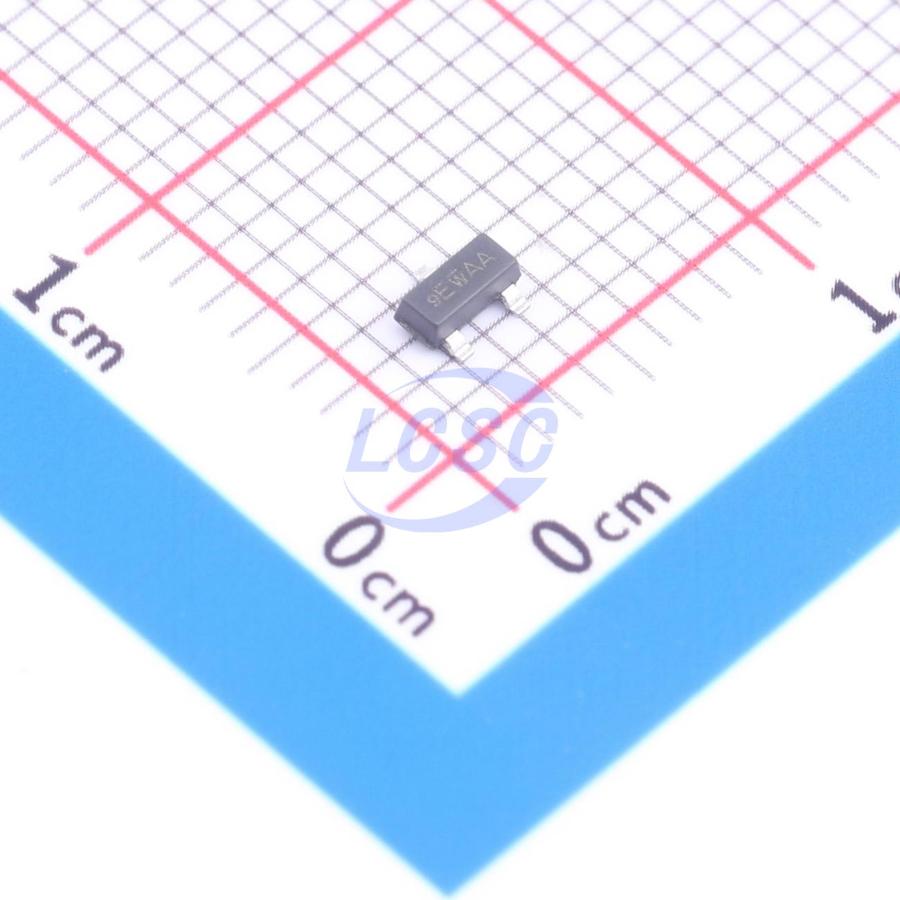

SQ2398ES-T1_BE3
100V 1.67A 2W 300mΩ@10V 1 N-channel N-Channel SOT-23-3(TO-236-3) Single FETs, MOSFETs RoHS
SOT-23-3(TO-236-3)ROHS3 CompliantActive
Automotive N-Channel 100V MOSFET, Current:1.67A, Breakdown Voltage:100V
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ2398ES-T1_BE3
- Store part #
- C3280179
- Package / case
- SOT-23-3(TO-236-3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C3280179
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.12 | ₹58.12 |
| 10+ | ₹56.81 | ₹568.10 |
| 30+ | ₹55.95 | ₹1,678.50 |
| 100+ | ₹55.08 | ₹5,508.00 |
1 × ₹58.12
₹58.12
excl. GST
₹68.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ2398ES-T1_BE3
₹58.12 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 28pF
- Current - Continuous Drain(Id)
- 1.67A
- Ciss-Input Capacitance
- 152pF
- Pd - Power Dissipation
- 2W
- RDS(on)
- 300mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. Compliant with AEC-Q101 and supported by PPAP, it is ideally suited for: battery charging, power management functions, DC-DC converters, and load switching.
Applications
- Battery Charging - Power Management Functions - DC-DC Converters - Load Switches
Key features
- Trench field-effect transistor (TrenchFET) power MOSFET
- AEC-Q101 qualified
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- RoHS compliant and halogen-free
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSS2N10A#C51025823HUASHUO · SOT-23 | HUASHUO | SOT-23 | 40 | ₹4.26 · 40 in stock | View |
 | SQ2398ES-T1_GE3#C727466VISHAY · SOT-23 | VISHAY | SOT-23 | 2,277 | ₹68.81 · 2,277 in stock | View |
 | JMGL3V10A#C2890413Jiangsu JieJie Microelectronics · SOT-23 | Jiangsu JieJie Microelectronics | SOT-23 | 750 | ₹9.42 · 750 in stock | View |
| SI2392-TP#C19992066MCC · SOT-23 | MCC | SOT-23 | 890 | ₹9.38 · 890 in stock | View | |
 | SI2324DS-T1-GE3#C190351VISHAY · SOT-23 | VISHAY | SOT-23 | 75 | ₹113.69 · 75 in stock | View |
