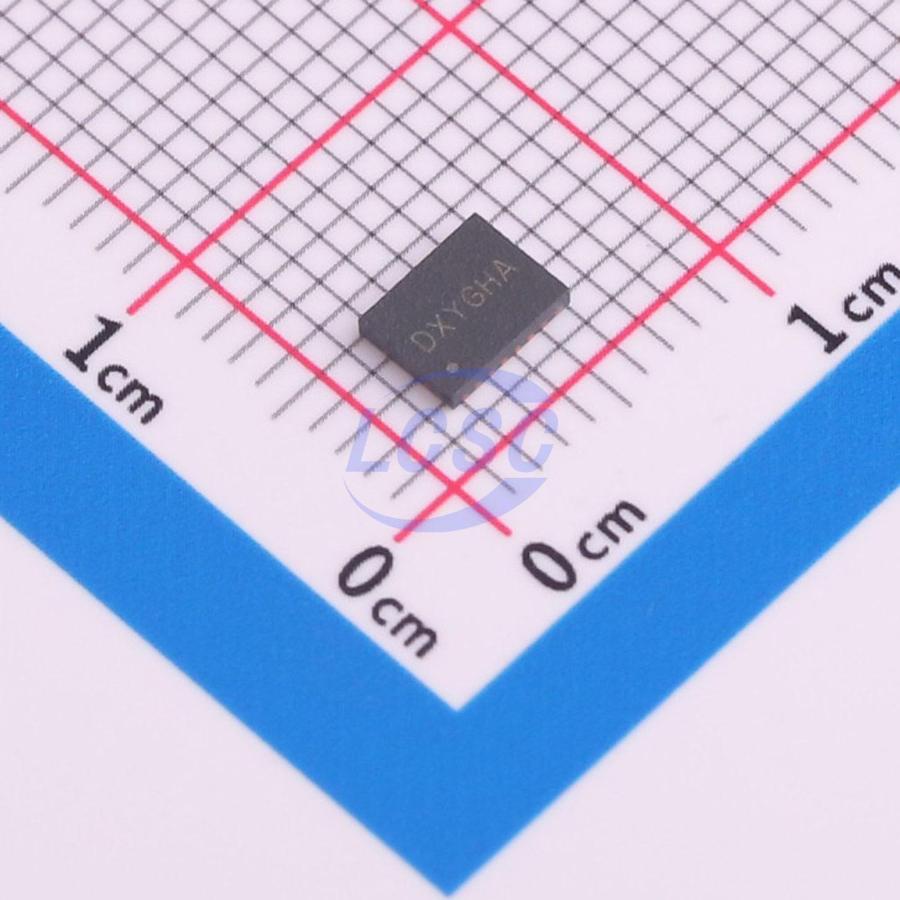

SQ33065WAQ

Buck Switching Regulator IC QFN-20(3.5x4.5)

QFN-20(3.5x4.5)ROHS CompliantActive

6V to 75V Synchronous Buck Controller

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,421 in stock

#C5359316

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹164.24

₹164.24

excl. GST

₹193.80 incl. 18% GST

SQ33065WAQ

₹164.24 for 1 + GST

Specifications

Operating Temperature: -40℃~+125℃
Number of Outputs: 1
Frequency - Switching: 100kHz~1MHz
Function: Step-down type
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Output voltage tracking;Operating status indication;Frequency synchronization;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 6V~75V
Switch tube (built-in/external): External
Quiescent Current: 1mA

The SQ33065 is 75V synchronous buck controller with type Ⅲ voltage mode control and feedforward.
Minimum tens of nanosecond on-time facilitates large step-down ratios.
The SQ33065 continues to operate when input voltage decreases to as low as 6V.
VIN over voltage protection is achieved by directly detecting VIN pin voltage to prevent output inverse charging.
Cycle-by-cycle over current protection is accomplished by measuring the voltage across the lowside MOSFET or current sense resistor.
Forced-PWM (FPWM) eliminates frequency variation and a selectable diode emulation lowers power consumption at light-load conditions.
The switching frequency as high as 1 MHz can be set or synchronized to an external clock.
