HXY MOSFETDatasheet (PDF)

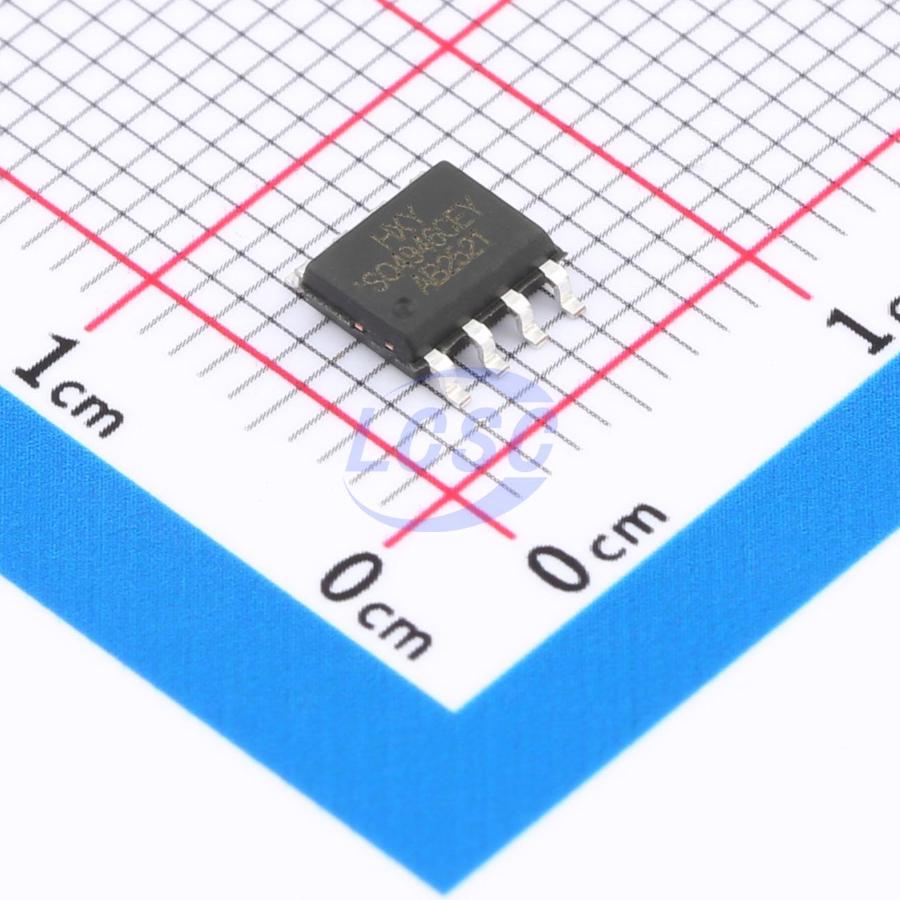

SQ4946CEY-T1_GE3-HXY
60V 6.5A 2.1W 32mΩ@10V 2 N-Channel N-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
MOSFET N-CH 60V 6.5A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SQ4946CEY-T1_GE3-HXY
- Store part #
- C49256924
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
168 in stock
#C49256924
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.50 | ₹76.50 |
| 10+ | ₹62.88 | ₹628.80 |
| 30+ | ₹57.05 | ₹1,711.50 |
| 100+ | ₹49.71 | ₹4,971.00 |
| 500+ | ₹41.70 | ₹20,850.00 |
| 1,000+ | ₹39.76 | ₹39,760.00 |
1 × ₹76.50
₹76.50
excl. GST
₹90.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ4946CEY-T1_GE3-HXY
₹76.50 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A
- Output Capacitance(Coss)
- 155pF
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 2.1W
- Reverse Transfer Capacitance (Crss)
- 116pF
- RDS(on)
- 32mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 50nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
