VISHAYDatasheet (PDF)

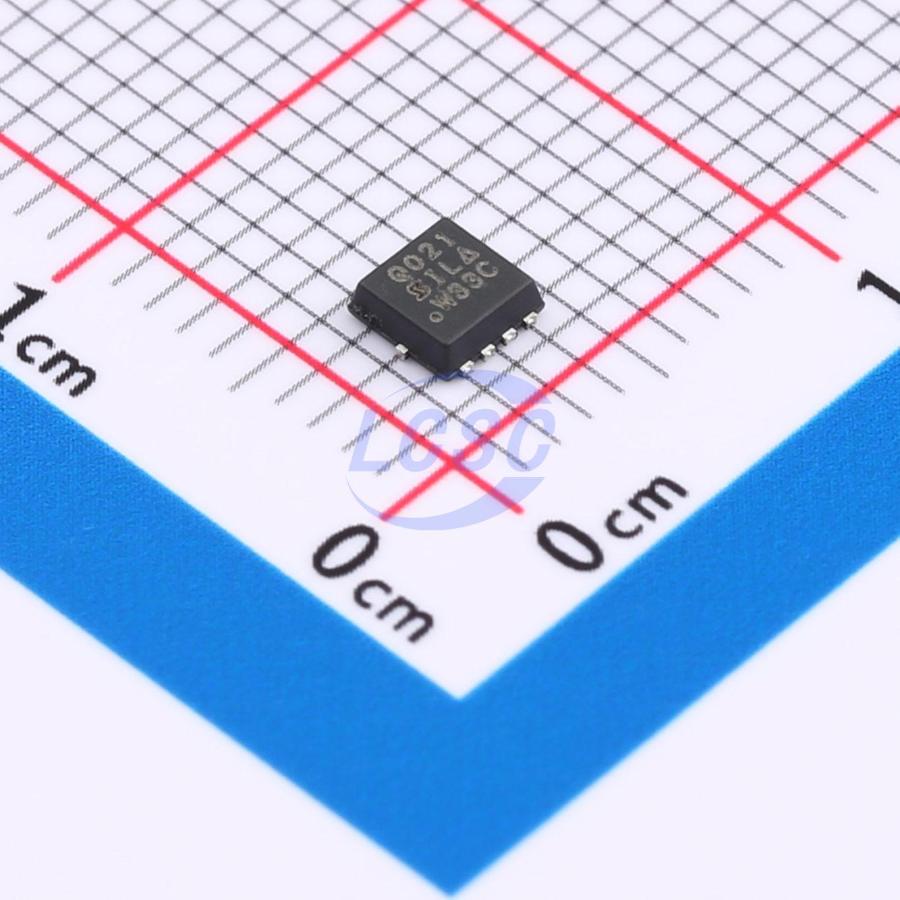

SQ7415AENW-T1_GE3
P-Channel 60V 16A 17W Surface Mount PowerPAK-1212-8W
PowerPAK-1212-8WROHS CompliantDiscontinued
MOSFET P-CH 60V 16A PowerPAK-1212-8W
- Manufacturer
- VISHAY
- Manufacturer part #
- SQ7415AENW-T1_GE3
- Store part #
- C727691
- Package / case
- PowerPAK-1212-8W
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C727691
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.03 | ₹133.03 |
| 10+ | ₹119.97 | ₹1,199.70 |
| 30+ | ₹112.79 | ₹3,383.70 |
| 100+ | ₹104.73 | ₹10,473.00 |
| 500+ | ₹101.25 | ₹50,625.00 |
| 1,000+ | ₹99.50 | ₹99,500.00 |
1 × ₹133.03
₹133.03
excl. GST
₹156.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SQ7415AENW-T1_GE3
₹133.03 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 132pF
- Ciss-Input Capacitance
- 1.385nF
- Pd - Power Dissipation
- 17W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 16A
- Reverse Transfer Capacitance (Crss)
- 105pF
- RDS(on)
- 65mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
Key features
- TrenchFET power MOSFET
- Low thermal resistance PowerPAK 1212-8 W package with 1.07 mm profile Pb-free
- AEC-Q101 qualified RoHS
- Wettable flank terminals COMPLIANT
- 100 % Rg and UIS tested HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ7415AEN-T1_GE3#C506610VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 2 | ₹83.19 · 2 in stock | View |
 | SQ7415CENW-T1_GE3#C3289441VISHAY · PowerPAK1212-8W | VISHAY | PowerPAK1212-8W | 5,097 | ₹72.55 · 5,097 in stock | View |
 | SQ7415AEN-T1_BE3#C18197888VISHAY · PowerPAK-1212-8 | VISHAY | PowerPAK-1212-8 | 1,985 | ₹77.04 · 1,985 in stock | View |
 | HNTTFS5116PLTWG#C42401369HXY MOSFET · WDFN-8(3.3x3.3) | HXY MOSFET | WDFN-8(3.3x3.3) | 45 | ₹51.66 · 45 in stock | View |
 | SISS5623DN-T1-GE3#C20346159VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 1 | ₹186.89 · 1 in stock | View |
